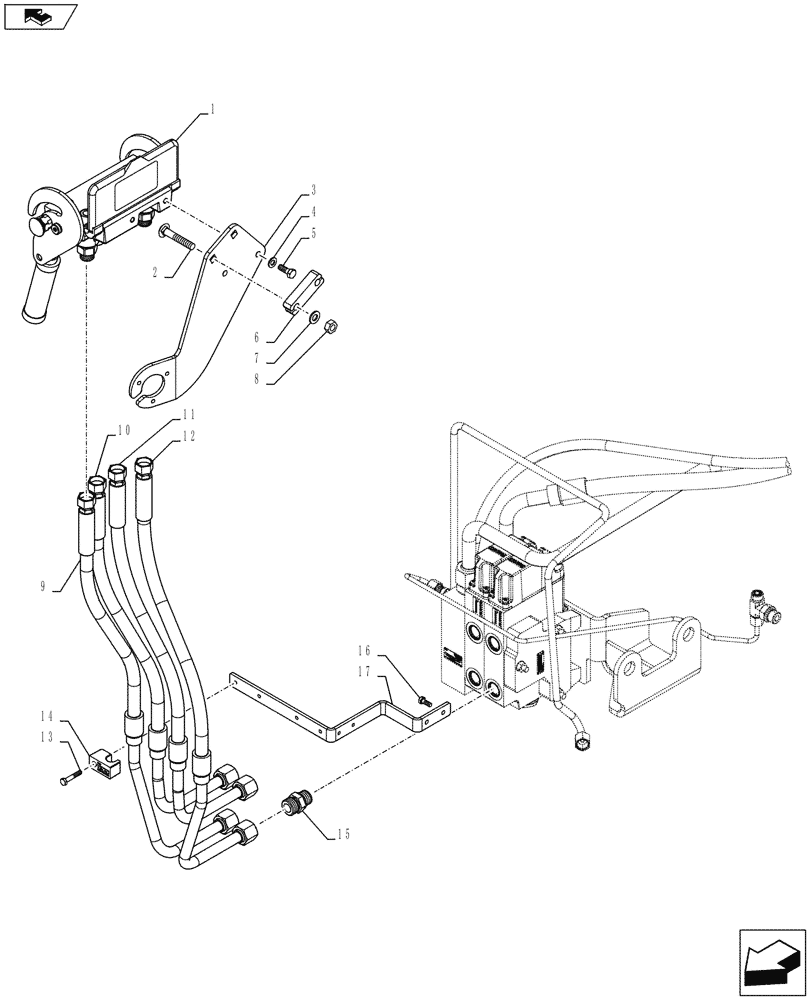

Запчасти Case IH FARMALL 115U (35.701.AX[02]) - VAR - 336386 - MULTIFASTER COUPLING, W/ MID MOUNT VALVE (35) - HYDRAULIC SYSTEMS

1

87733579

COUPLING

Multifaster HHydraulic Connector

1шт.

Includes Connector Service KIT PN 87616935 (Qty. 4)

1шт.

2

86512447

CARRIAGE BOLT,Short Square Neck, M10 x 60mm, Class 8.8

2шт.

3

84529495

BRACKET, SUPPORTING

1шт.

4

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

2шт.

5

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

6

84529497

BRACKET, SUPPORTING

1шт.

7

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

8

100016

NUT,M10 x 1.5, Cl 8

2шт.

9

84531733

HYDRAULIC HOSE

from MMV to front Loader, Bump

1шт.

10

84531737

HYDRAULIC HOSE

from MMV to front Loader, Scoop

1шт.

11

84531742

HYDRAULIC HOSE

from MMV to front Loader, Rise

1шт.

12

84531748

HYD TUBE

from MMV to front Loader, Lower

1шт.

13

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

4шт.

14

84309587

BRACKET

4шт.

15

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

4шт.

16

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

17

84528805

BRACKET

1шт.
