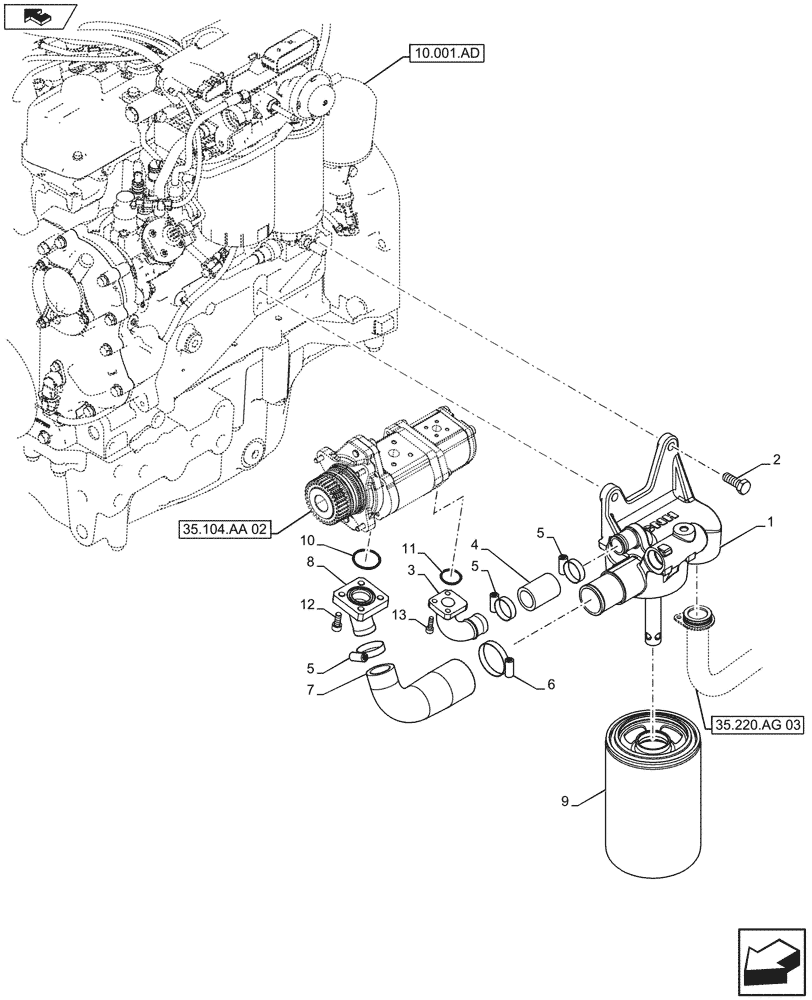

Запчасти Case IH FARMALL 115U (35.220.AG[04]) - VAR - 331690 - HYDRAULIC OIL FILTER, W/ 80 L/MIN HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

84581495

SUPPORT

1шт.

2

11112624

BOLT,M12 x 35, 8.8, Full Thd

2шт.

3

84581955

HYDRAULIC MANIFOLD

1шт.

4

84581957

SLEEVE,32mm ID x 42mm OD x 50mm L

1шт.

5

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

3шт.

6

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

1шт.

7

84348893

SLEEVE

1шт.

8

84361142

FLANGE

1шт.

9

84581942

HYDRAULIC OIL FILTER,135mm OD x 244mm L, M55 x 1.5, 50 Microns

for Hydraulic Pump 80 L/Min (32 cc)

1шт.

10

14458380

O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro

1шт.

11

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

3шт.

12

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

3шт.

13

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

3шт.
