Запчасти Case IH FARMALL 115U (35.220.AG[01A]) - STD + VAR - 743911 - HYDRAULIC OIL FILTER, W/ 61 L/MIN HYDRAULIC PUMP - BEGIN YR 28-MAY-2014 (35) - HYDRAULIC SYSTEMS

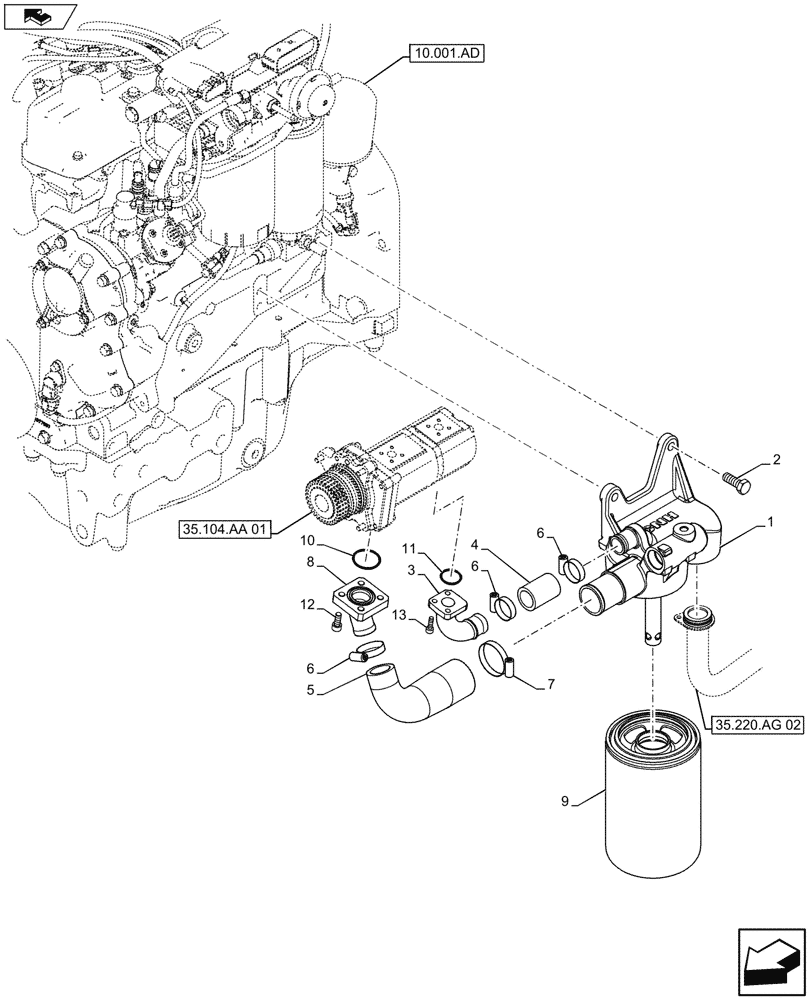

Схема запчастей Case IH FARMALL 115U - (35.220.AG[01A]) - STD + VAR - 743911 - HYDRAULIC OIL FILTER, W/ 61 L/MIN HYDRAULIC PUMP - BEGIN YR 28-MAY-2014 (35) - HYDRAULIC SYSTEMS
35.104.aa 01
3
4
6
6
1
home
11
8
2
6
5
10
12
13
7
9
35.220.ag 02
10.001.ad

Артикул

Название

Примечание

Количество

1

84581495

SUPPORT

1шт.

2

11112624

BOLT,M12 x 35, 8.8, Full Thd

2шт.

3

84581995

SUPPORT

1шт.

4

84581957

SLEEVE,32mm ID x 42mm OD x 50mm L

1шт.

5

84348893

SLEEVE

1шт.

6

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

3шт.

7

13001690

HOSE CLAMP,Worm Gear, 30mm/45mm x 9mm W, CST, ZND

1шт.

8

84348891

TUBE

1шт.

9

84581942

HYDRAULIC OIL FILTER,135mm OD x 244mm L, M55 x 1.5, 50 Microns

for Hydraulic Pump 61 L/Min (24 cc)

1шт.

10

14458380

O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro

1шт.

11

14457780

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

1шт.

12

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

4шт.

13

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

3шт.

Выбрано товаров: 13
