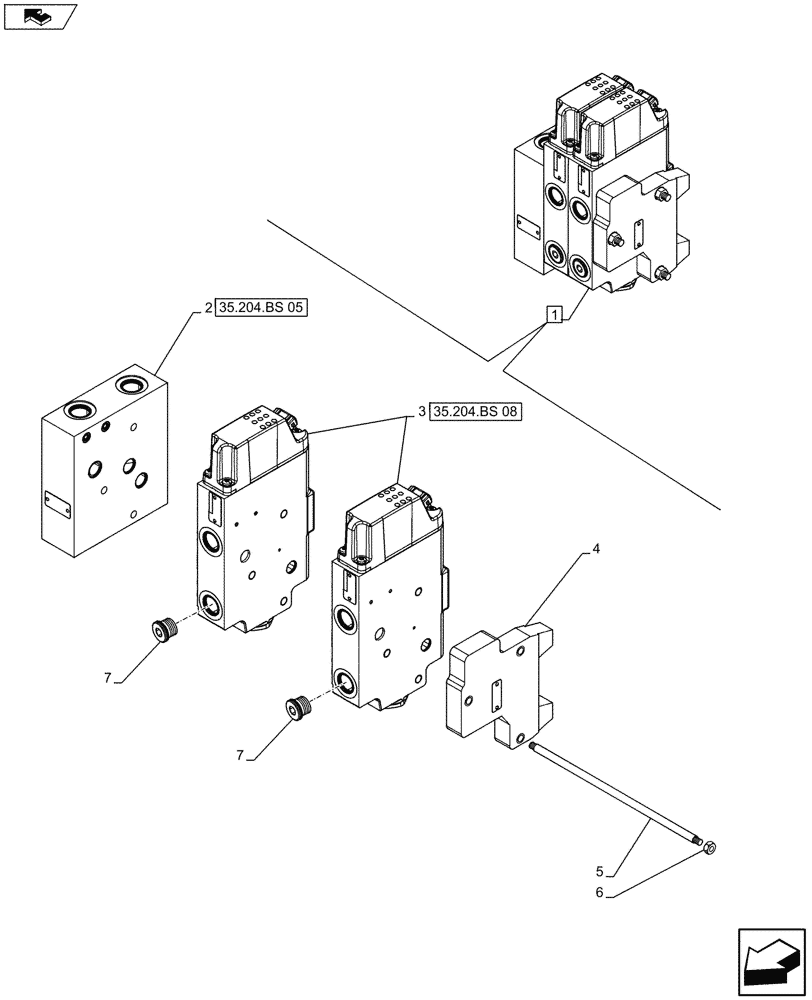

Запчасти Case IH FARMALL 115U (35.204.BS[07]) - VAR - 336386 - MID MOUNT VALVE KIT, ELECTRONIC, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84322506

CONTROL VALVE

ASSY, Incl 2 - 7

1шт.

See Mid Mount Valve Components also in Figures 35.204.BS 05, 35.204.BS 08

1шт.

2

84381621

VALVE SECTION

Inlet Plate

1шт.

3

84381608

HYD VALVE SECTION

2шт.

3

84381608R

REMAN-HYD VALVE

Reman Valve

2шт.

3

84381608C

CORE-VALVE HYD

Core Return Number

2шт.

4

84384186

FLANGE

End Plate

1шт.

5

87751799

TRUSS ROD

155mm

3шт.

6

5195169

NUT,M8

3шт.

7

47554504

KIT,M5 x 18mm, Cl 10.9mm

4шт.
