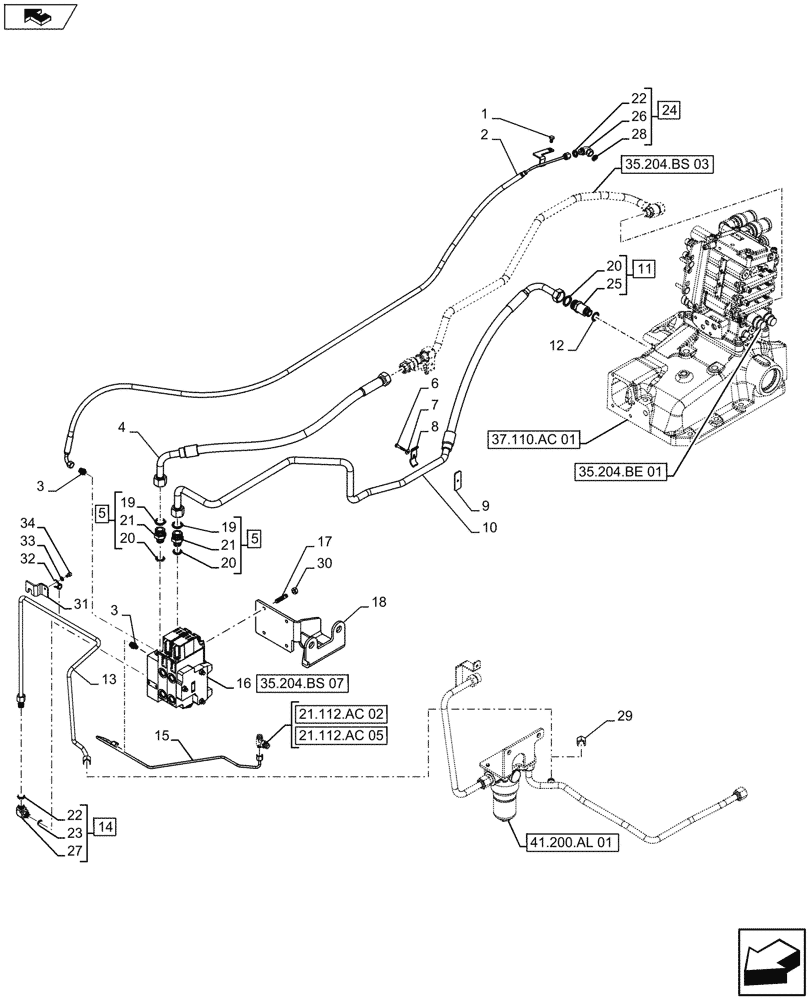

Запчасти Case IH FARMALL 115U (35.204.BS[06]) - VAR - 336386 - MID MOUNT VALVE KIT, ELECTRONIC (35) - HYDRAULIC SYSTEMS

1

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

2

47470733

HYD TUBE

LS, Electrohydraulic MMV

1шт.

3

87016907

HYD CONNECTOR,9/16"-18 ORFS x M10 x 1 ORB

2шт.

4

84531702

HYD TUBE

Supply, Electrohydraulic MMV

1шт.

5

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 19 - 21

2шт.

6

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

1шт.

7

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

8

84591661

BRACKET

1шт.

9

5179404

SUPPORT

1шт.

10

47543683

HYD TUBE

Return, Electrohydraulic MMV

1шт.

11

84605368

HYD CONNECTOR

ASSY, Incl 20, 25

1шт.

12

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

13

84531721

TUBE

Pilot, Electrohydraulic MMV

1шт.

14

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 22 - 23, 27

1шт.

15

47549866

PIPE

Return Pilot, Electrohydraulic MMV

1шт.

16

84322506

CONTROL VALVE

ASSY

1шт.

17

13516924

STUD,M8 x 34mm L, Cl. 8.8

4шт.

18

84531685

BRACKET

1шт.

19

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

20

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

22

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

23

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 22, 26, 28

1шт.

25

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

26

NSS

NOT SOLD SEPARAT

Elbow, Incl in 24

1шт.

27

NSS

NOT SOLD SEPARAT

Elbow, Incl in 14

1шт.

28

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

29

9625546

CAP,11/16" - 16 ORFS

1шт.

30

16100821

NUT,M8, Cl 10

4шт.

31

47570112

BRACKET

1шт.

32

10441290

COLLAR,10mm, Coat, P Type

1шт.

33

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

34

14305021

HEX SOC SCREW,M6 x 10mm, Cl 8.8, Full Thd

1шт.
