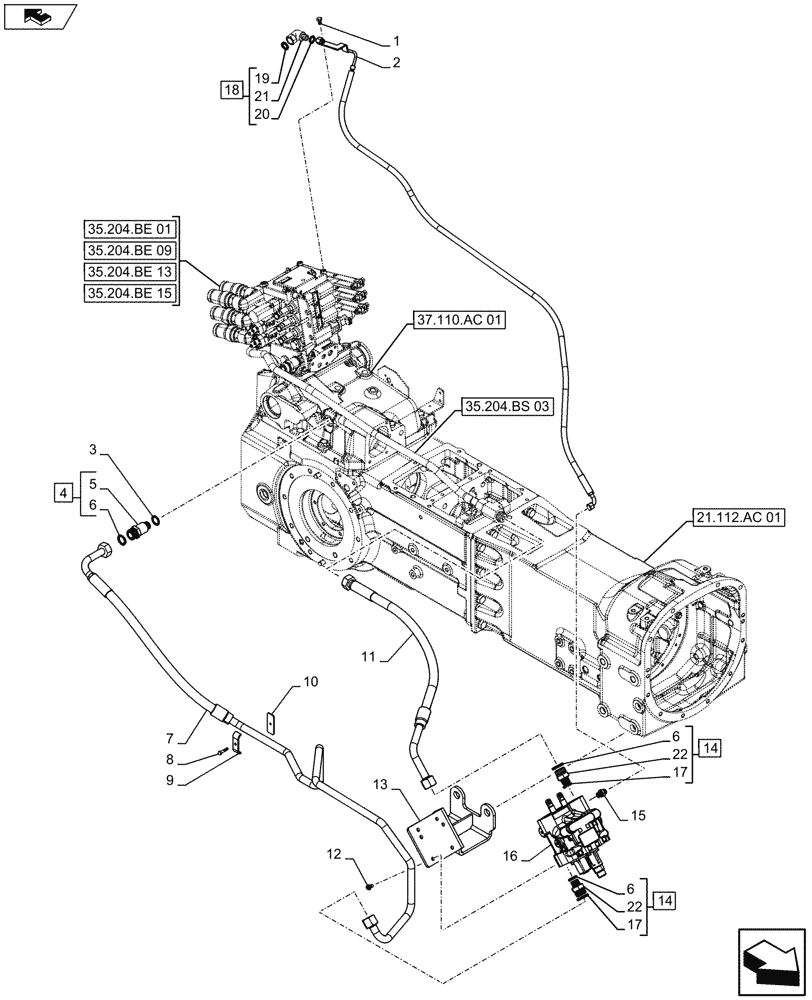

Запчасти Case IH FARMALL 115U (35.204.BS[02]) - VAR - 743919 - MID MOUNT VALVE KIT, HYDRAULIC LINE, ISO (35) - HYDRAULIC SYSTEMS

1

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

2

84590498

HYD TUBE

LS Mid Mount Valve, Serial Range: -C9022

1шт.

2

47470731

HYDRAULIC HOSE

LS Mid Mount Valve, Start Serial: D9022

1шт.

3

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

4

84605368

HYD CONNECTOR

ASSY, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

7

84590495

PIPE

Return Mid Mount Valve

1шт.

8

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

1шт.

9

84591659

CLAMP

1шт.

10

84554068

BRACKET

1шт.

11

84528725

HYD TUBE

Delivery Mid Mount Valve

1шт.

12

86625006

BOLT,Hex, M8 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

13

84528754

BRACKET

1шт.

14

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 6 (Qty 4), 17, 22

2шт.

15

87661868

HYD CONNECTOR,M14 x 1.5 x 29.5mm L

1шт.

16

87696631

INCHING VALVE

1шт.

17

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

18

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 19 - 21

1шт.

19

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

20

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

Elbow, Incl in 18

1шт.

22

NSS

NOT SOLD SEPARAT

Connector, Incl in14

2шт.
