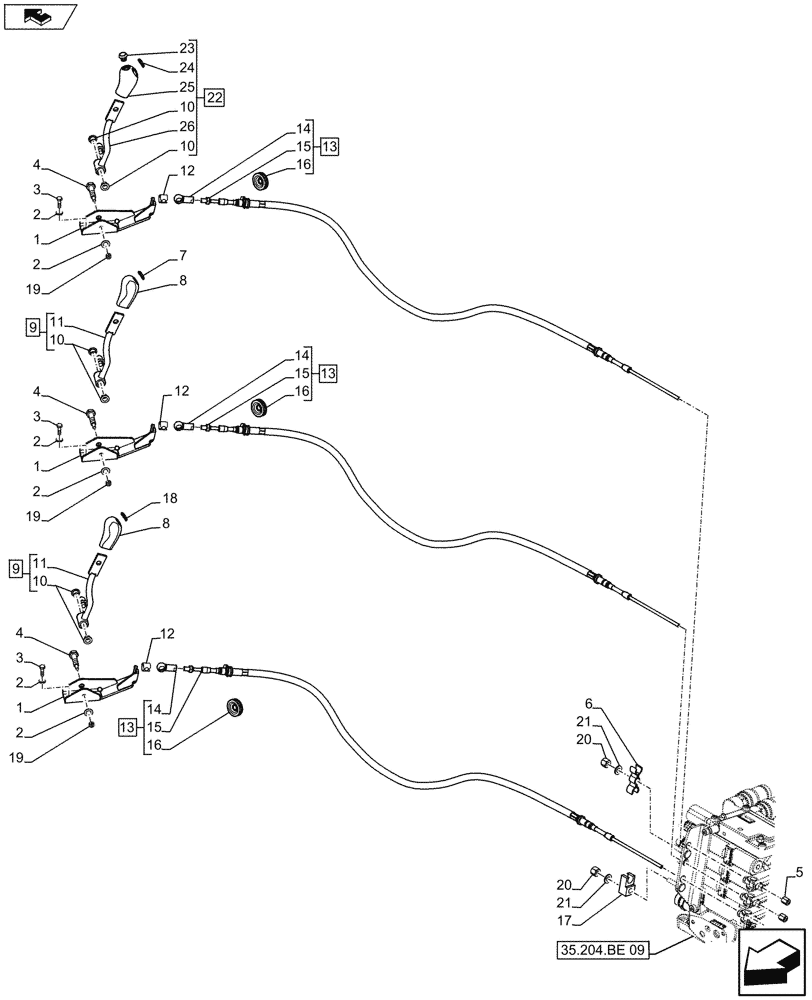

Запчасти Case IH FARMALL 115U (35.204.BL[02]) - VAR - 332844 - REMOTE CONTROL VALVE, CONTROL LEVER (35) - HYDRAULIC SYSTEMS

1

84295559

SUPPORT

3шт.

2

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

9шт.

3

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

4

84302881

PIN,16.2mm OD x 49.5mm L

3шт.

5

82012528

NUT,Hex, M6 x 1

3шт.

6

5191951

CLAMP,3 Hoses

1шт.

7

87698506

DATA PLAQUE

Blue

1шт.

8

87698499

KNOB

2шт.

9

84395524

LEVER

ASSY, Incl 10 (Qty 2), 11

2шт.

10

84295562

BUSHING,10mm ID x 12mm OD x 10mm L

6шт.

11

84324148

LEVER

2шт.

12

10125574

CLAMP,13mm

3шт.

13

84485407

BOWDEN CONTROL

ASSY, Incl 14 - 16

3шт.

14

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

3шт.

15

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 13

3шт.

16

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

3шт.

17

47132225

BRACKET

1шт.

18

87698505

DATA PLAQUE

Green

1шт.

19

12575411

LOCK NUT,M6 x 1, Cl 8

3шт.

20

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

2шт.

21

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

22

84352668

LEVER

ASSY, Incl 10 (Qty 2), 23 - 26

1шт.

23

84123781

SWITCH

1шт.

24

87698516

DATA PLAQUE

Ginger

1шт.

25

87707810

KNOB

1шт.

26

84324151

LEVER

1шт.
