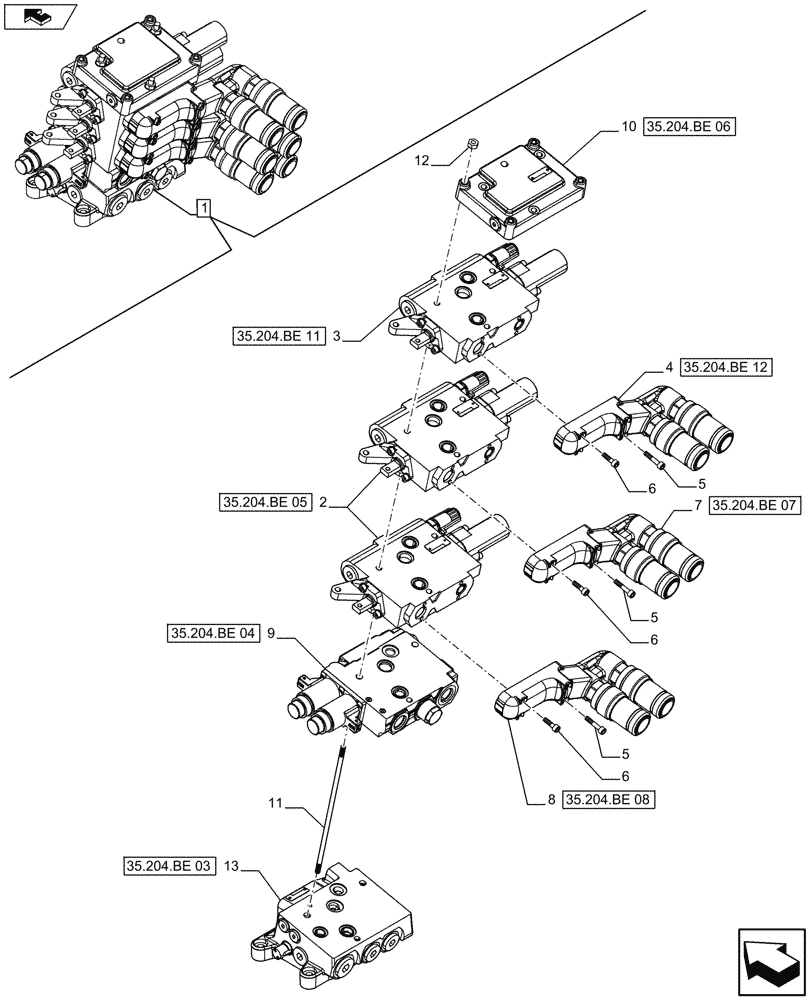

Запчасти Case IH FARMALL 115U (35.204.BE[14]) - VAR - 331844 - REMOTE CONTROL VALVE, COMPONENTS (4 REMOTES) (35) - HYDRAULIC SYSTEMS

1

87311373

CONTROL VALVE

ASSY, Incl 2 - 13

1шт.

See Remote Control Valve Components also in Figures 35.204.BE 03, 35.204.BE 04, 35.204.BE 05, 35.204.BE 06, 35.204.BE 07, 35.204.BE 08, 35.204.BE 11, 35.204.BE 12

1шт.

2

87328572

HYD VALVE SECTION

ASSY

2шт.

2

87328572R

REMAN-HYD VALVE

2шт.

2

87328572C

CORE-VALVE HYD

Return Number

2шт.

3

87546169

CONTROL VALVE

ASSY

1шт.

3

87546169R

REMAN-HYD VALVE

1шт.

3

87546169C

CORE-VALVE HYD

Return Number

1шт.

4

87381964

QUICK MALE COUPLING

ASSY

1шт.

5

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

6

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

7

87381963

QUICK MALE COUPLING

ASSY

1шт.

8

87381958

QUICK MALE COUPLING

ASSY

1шт.

9

84175671

VALVE SECTION

ASSY

1шт.

9

84175671R

REMAN-HYD VALVE

1шт.

9

84175671C

CORE-VALVE HYD

Return Number

1шт.

10

5192188

BODY

ASSY

1шт.

11

47123183

STUD,M8

3шт.

12

5195169

NUT,M8

3шт.

13

5192186

DISTRIBUTOR

ASSY

1шт.
