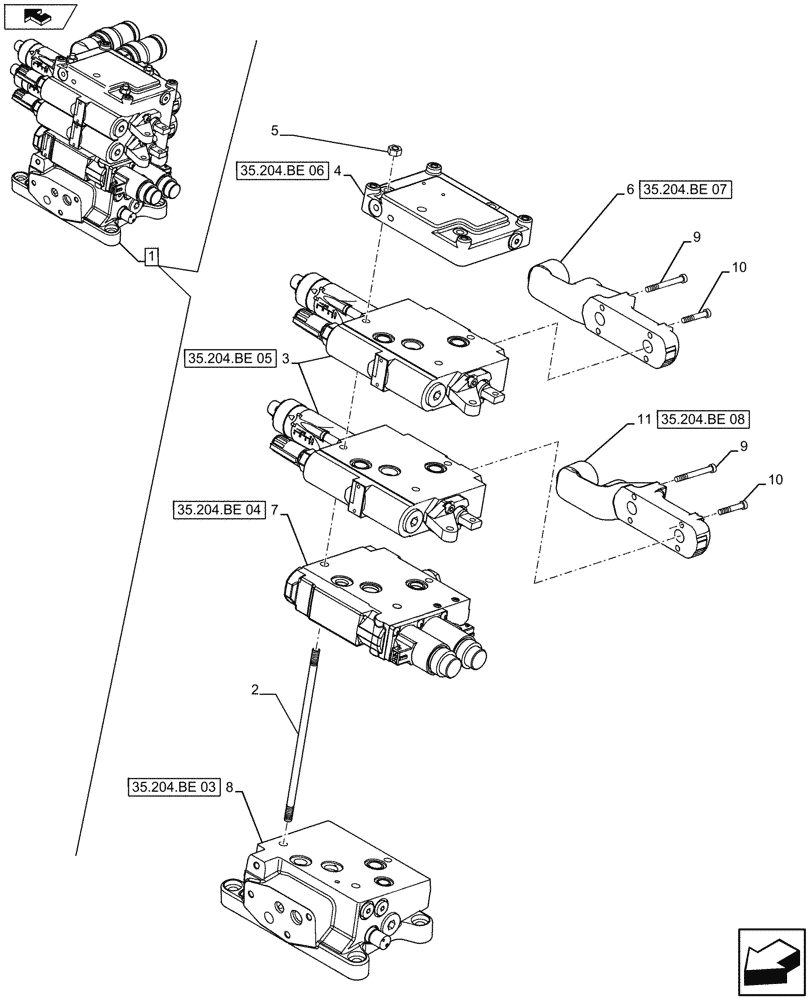

Запчасти Case IH FARMALL 115U (35.204.BE[02]) - VAR - 330849 - REMOTE CONTROL VALVE, COMPONENTS (3 REMOTES) (35) - HYDRAULIC SYSTEMS

1

87312720

CONTROL VALVE

ASSY, Incl 2 - 11

1шт.

See Remote Control Valve Components also in Figures 35.204.BE 03, 35.204.BE 04, 35.204.BE 05, 35.204.BE 06, 35.204.BE 07, 35.204.BE 08

1шт.

2

5195168

TIE-ROD,M8

3шт.

3

87328572

HYD VALVE SECTION

ASSY

2шт.

3

87328572R

REMAN-HYD VALVE

2шт.

3

87328572C

CORE-VALVE HYD

Return Number

2шт.

4

5192188

BODY

ASSY

1шт.

5

5195169

NUT,M8

3шт.

6

87381963

QUICK MALE COUPLING

ASSY

1шт.

7

84175671

VALVE SECTION

ASSY

1шт.

7

84175671R

REMAN-HYD VALVE

1шт.

7

84175671C

CORE-VALVE HYD

Return Number

1шт.

8

5192186

DISTRIBUTOR

ASSY

1шт.

9

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

10

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

11

87381958

QUICK MALE COUPLING

ASSY

1шт.
