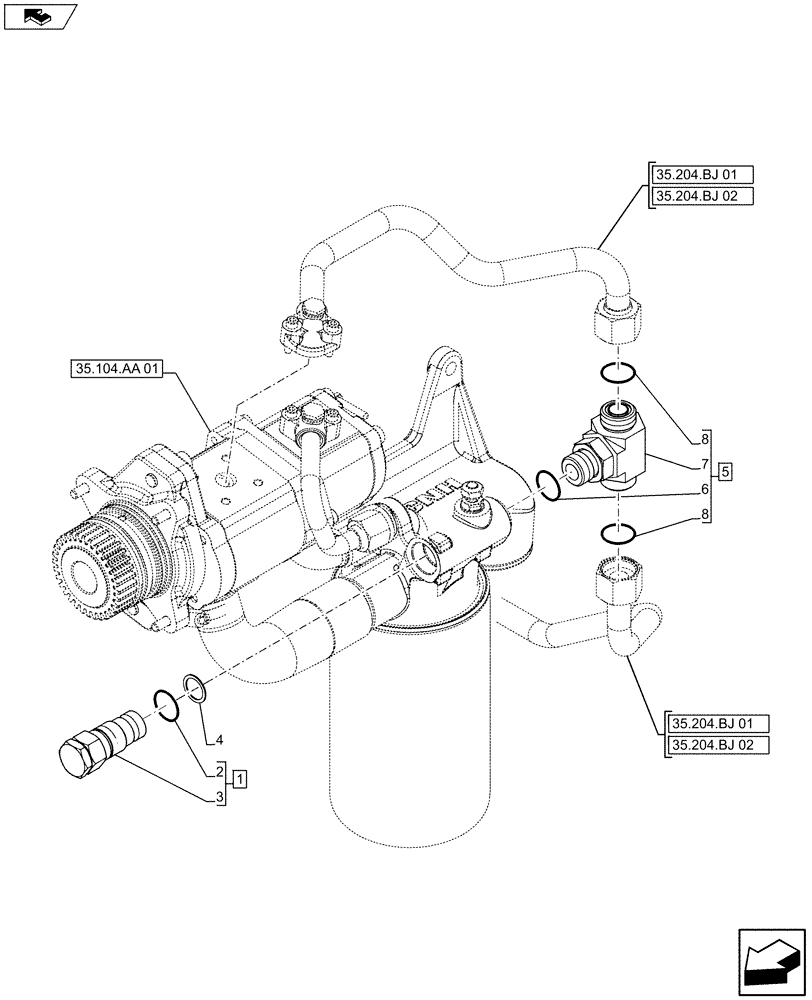

Запчасти Case IH FARMALL 115U (35.204.AY) - STD + VAR - 330849, 331844, 332844, 338844, 743911 - PRESSURE RELIEF VALVE (35) - HYDRAULIC SYSTEMS

1

47128782

VALVE PRESSURE RELIE

ASSY, Incl 2, 3

1шт.

2

14453980

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 1

1шт.

4

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

5

86579712

TEE,M27 x 2 x 55.5mm

ASSY, Incl 6 - 8

1шт.

6

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Incl in 5

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl in 5

2шт.
