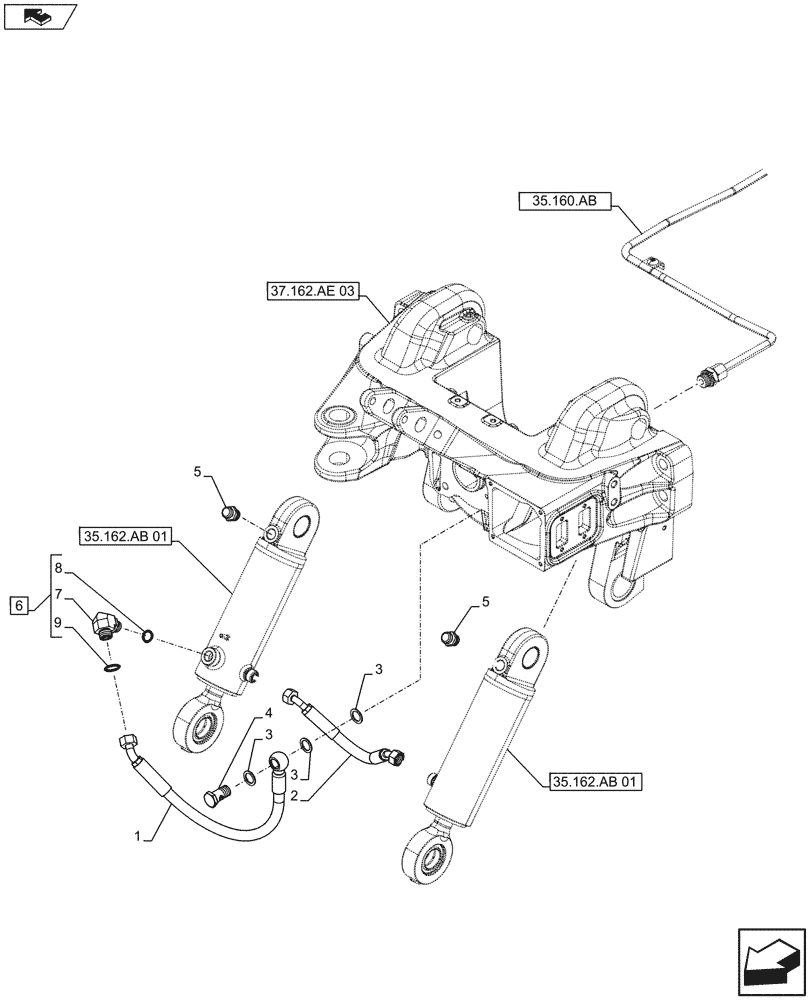

Запчасти Case IH FARMALL 115U (35.162.AG[02]) - VAR - 331789, 332789 - PIPE, W/ FRONT HYDRAULIC LIFT, D/A (35) - HYDRAULIC SYSTEMS

1

84521288

HYDRAULIC HOSE,9.53mm ID x 470mm L, SAE 100R2

1шт.

2

47397095

HYDRAULIC HOSE,9.53mm ID x 300mm L, SAE 100R2

1шт.

3

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

3шт.

4

5170235

BANJO BOLT,M18 x 1.5 x 35mm

1шт.

5

87560100

BREATHER,M18 x 1.5mm

2шт.

6

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
