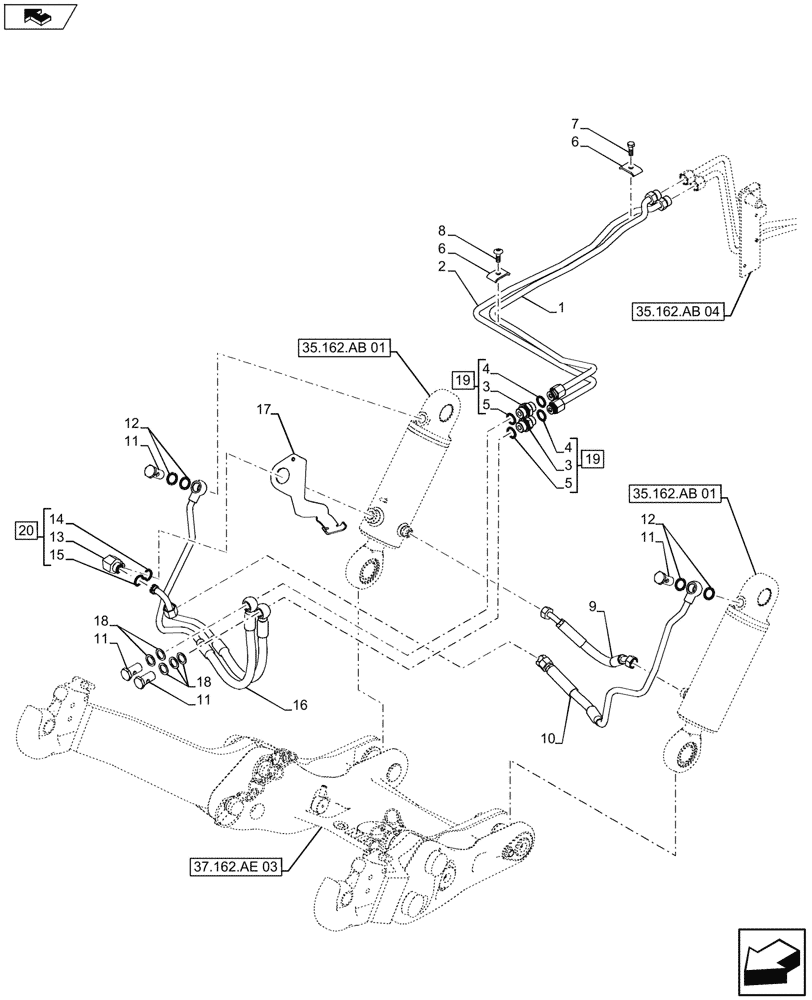

Запчасти Case IH FARMALL 115U (35.162.AB[05]) - VAR - 330620 - 3 POINT HITCH, FRONT, HYDRAULIC SYSTEM, D/A (35) - HYDRAULIC SYSTEMS

1

84413200

TUBE

1шт.

2

84413202

PIPE

1шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 19

1шт.

4

81845038

O-RING,0.5" ID x 0.07" Thk

1шт.

5

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

6

84519154

HOSE CLAMP

2шт.

7

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

M8 X 25 8.8 ZND

1шт.

8

920017519

SCREW,Oval, M8 x 25mm, Stainless

M8 X 25 FULL TORX SST PLN OVAL-HD

1шт.

9

47397095

HYDRAULIC HOSE,9.53mm ID x 300mm L, SAE 100R2

1шт.

10

47407384

HYD TUBE

1шт.

11

5170235

BANJO BOLT,M18 x 1.5 x 35mm

4шт.

12

87667806

SEALING WASHER,18mm ID x 26mm OD x 1.5mm

M18

4шт.

13

NSS

NOT SOLD SEPARAT

Elbow, Incl in 20

1шт.

14

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

15

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

16

47407395

HYD TUBE

1шт.

17

NSS

NOT SOLD SEPARAT

Bracket, Incl in 16

1шт.

18

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

5шт.

19

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

Assy, Incl 3 - 5

2шт.

20

5185054

ELBOW,90 Degrees, M18 x 1.5 ORB 13/16-16 ORFS

Assy, Incl 13 - 15

1шт.
