(35.162.AB[01]) - VAR - 331789, 332789 - 3 POINT HITCH, FRONT, CYLINDER

Запчасти Case IH FARMALL 115U (35.162.AB[01]) - VAR - 331789, 332789 - 3 POINT HITCH, FRONT, CYLINDER (35) - HYDRAULIC SYSTEMS

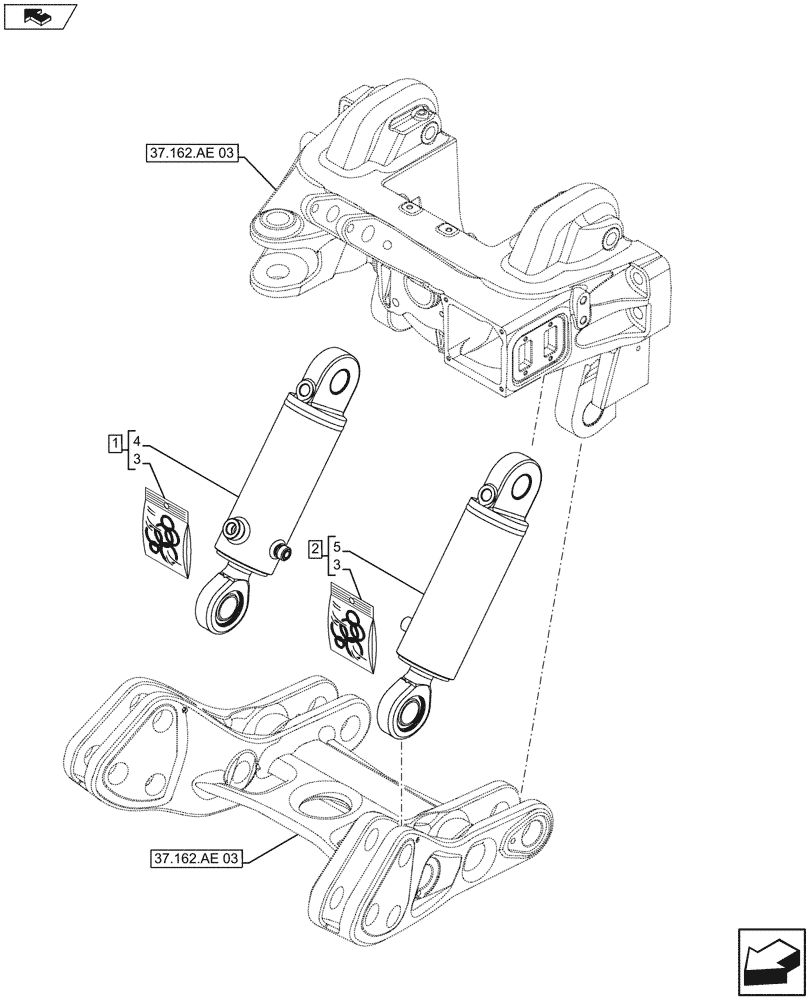

Схема запчастей Case IH FARMALL 115U - (35.162.AB[01]) - VAR - 331789, 332789 - 3 POINT HITCH, FRONT, CYLINDER (35) - HYDRAULIC SYSTEMS
37.162.ae 03
3
3
5
2
1
4
home
37.162.ae 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84530731

LIFT CYLINDER,Double Acting, 36mm Rod, 142mm Stroke

ASSY, RH, Incl 3 (Qty 1), 4

1шт.

2

84530732

LIFT CYLINDER,Double Acting, 36mm Rod, 142mm Stroke

ASSY, LH, Incl 3 (Qty 1), 5

2шт.

3

84530736

SEAL KIT

2шт.

4

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 2

1шт.

Выбрано товаров: 5
