(35.124.AB[01A]) - VAR - 332844 - REMOTE CONTROL VALVE, LINE - BEGIN YR 05-APR-2013

Запчасти Case IH FARMALL 115U (35.124.AB[01A]) - VAR - 332844 - REMOTE CONTROL VALVE, LINE - BEGIN YR 05-APR-2013 (35) - HYDRAULIC SYSTEMS

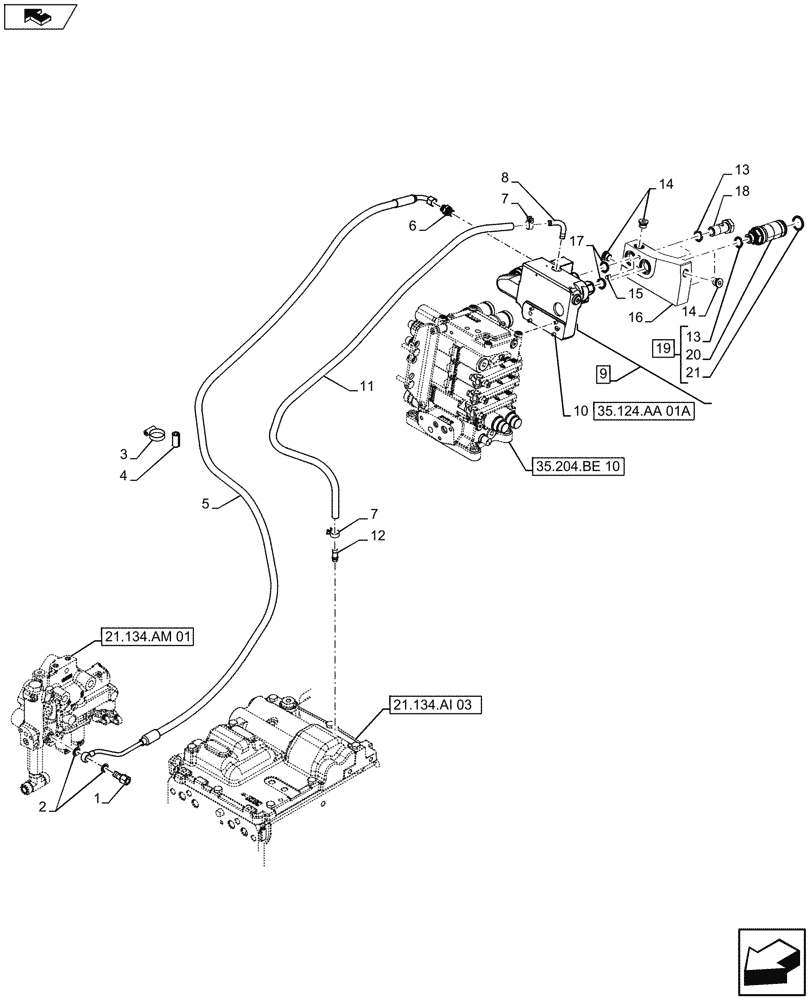

Схема запчастей Case IH FARMALL 115U - (35.124.AB[01A]) - VAR - 332844 - REMOTE CONTROL VALVE, LINE - BEGIN YR 05-APR-2013 (35) - HYDRAULIC SYSTEMS
21.134.ai 03
7
17
1
21
6
11
15
14
14
10
4
16
18
20
7
5
2
8
19
13
9
13
home
3
12
35.124.aa 01a
35.204.be 10
21.134.am 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84490382

HYD CONNECTOR

1шт.

2

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

3

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

4

84417270

RUBBER SLEEVE

1шт.

5

84487887

PIPE

Manifold Valve to Transmission Control Valve

1шт.

6

47135740

HYD CONNECTOR

1шт.

7

10187090

HOSE CLAMP,16mm - 18mm

2шт.

8

87310967

BREATHER

1шт.

9

84593742

CONTROL VALVE

ASSY, Incl 13 - 19

1шт.

10

84606007

CONTROL VALVE

1шт.

11

87310968

FLEXIBLE HOSE,10.00 mm ID x 1000.00 mm

Manifold Valve to Transmission Box

1шт.

12

5157395

FITTING

1шт.

13

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

14

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

3шт.

15

10839610

DOWEL,M8 x 12mm

2шт.

16

NSS

NOT SOLD SEPARAT

Manifold, Incl in 9

1шт.

17

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

2шт.

18

84596856

BANJO BOLT

2шт.

19

47370116

COUPLING

ASSY, Incl 13 (Qty2), 20, 21

19шт.

20

NSS

NOT SOLD SEPARAT

Coupler, Incl in 19

2шт.

21

87382012

SEAL KIT

2шт.
