(35.124.AB[01]) - VAR - 332844 - REMOTE CONTROL VALVE, LINE - END YR 04-APR-2013

Запчасти Case IH FARMALL 115U (35.124.AB[01]) - VAR - 332844 - REMOTE CONTROL VALVE, LINE - END YR 04-APR-2013 (35) - HYDRAULIC SYSTEMS

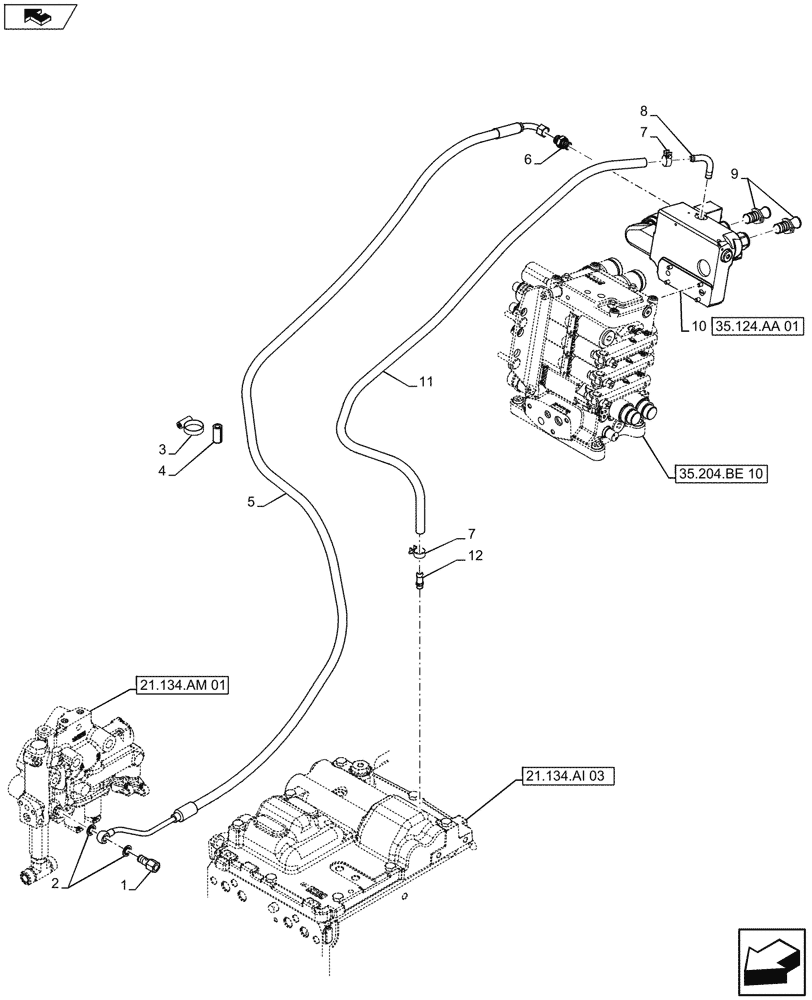

Схема запчастей Case IH FARMALL 115U - (35.124.AB[01]) - VAR - 332844 - REMOTE CONTROL VALVE, LINE - END YR 04-APR-2013 (35) - HYDRAULIC SYSTEMS
21.134.ai 03
10
6
home
3
7
12
2
9
11
7
8
1
4
5
35.204.be 10
21.134.am 01
35.124.aa 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84490382

HYD CONNECTOR

1шт.

2

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

3

13000590

HOSE CLAMP,25mm - 40mm, Worm Gear

1шт.

4

84417270

RUBBER SLEEVE

1шт.

5

84487887

PIPE

Manifold Valve to Transmission Control Valve

1шт.

6

47135740

HYD CONNECTOR

1шт.

7

10187090

HOSE CLAMP,16mm - 18mm

2шт.

8

87310967

BREATHER

1шт.

9

47135746

STOP PLUG

2шт.

10

87381996

CONTROL VALVE

1шт.

11

87310968

FLEXIBLE HOSE,10.00 mm ID x 1000.00 mm

Manifold Valve to Transmission Box

1шт.

12

5157395

FITTING

1шт.
