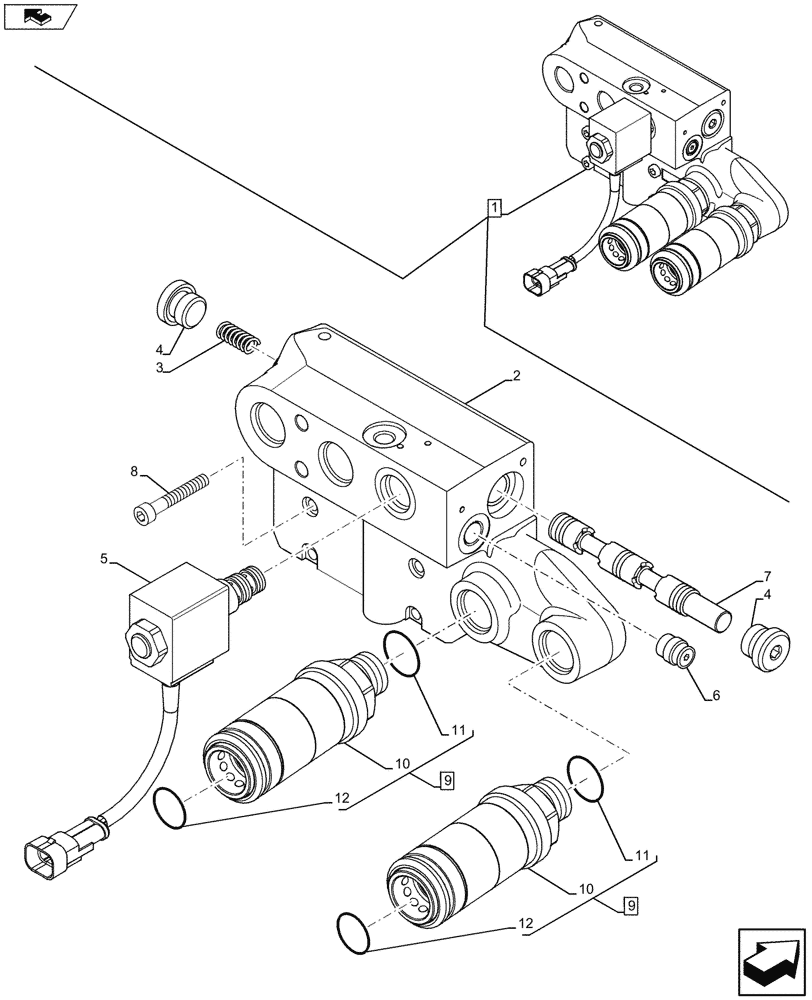

Запчасти Case IH FARMALL 115U (35.124.AA[01A]) - VAR - 332844 - HYDRAULIC MANIFOLD, COMPONENTS - BEGIN YR 05-APR-2013 (35) - HYDRAULIC SYSTEMS

1

84606007

CONTROL VALVE

ASSY, Incl 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

3

47134647

SPRING

1шт.

4

47134646

PLUG

2шт.

5

47134652

SOLENOID VALVE

1шт.

6

47134651

VALVE POPPET

1шт.

7

47134650

SPOOL

1шт.

8

14305824

SCREW,M6 x 40mm, Cl 8.8

4шт.

9

47370116

COUPLING

ASSY, Incl 10 - 12

2шт.

10

NSS

NOT SOLD SEPARAT

Coupler, Incl in 9

2шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

12

87382012

SEAL KIT

2шт.
