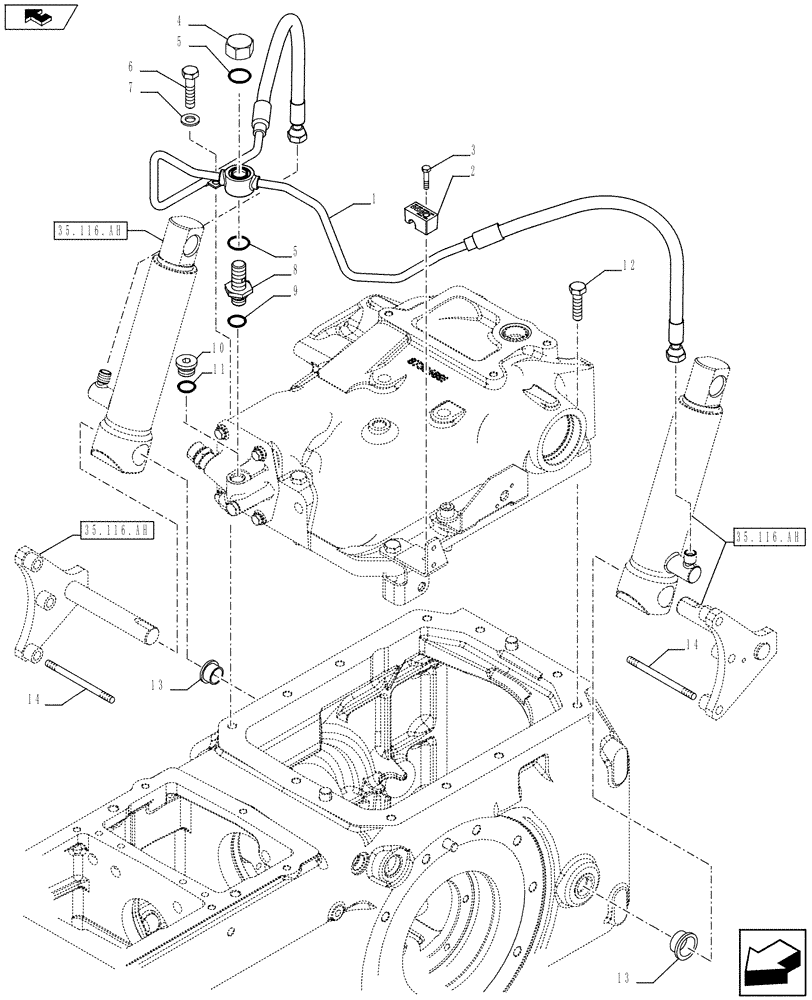

Запчасти Case IH FARMALL 115U (35.116.AD) - VAR - 743597 - HYDRAULIC LIFT, LINE, ISO (35) - HYDRAULIC SYSTEMS

1

84482826

PIPE

for Two Auxiliary Rams

1шт.

2

84368933

BRACKET

1шт.

3

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

4

84403943

PIPE PLUG

1шт.

5

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.

6

15540821

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

7

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

8

84403942

BANJO BOLT

1шт.

9

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

10

10119411

PLUG,M18 x 1.5 x 12.00mm

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

12

86642435

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

1шт.

13

5160960

PLUG,30mm

2шт.

14

13558130

STUD

6шт.
