Запчасти Case IH FARMALL 115U (35.104.AA[05]) - STD + VAR - 743911 - REAR LIFT PUMP (25CC), COMPONENTS (35) - HYDRAULIC SYSTEMS

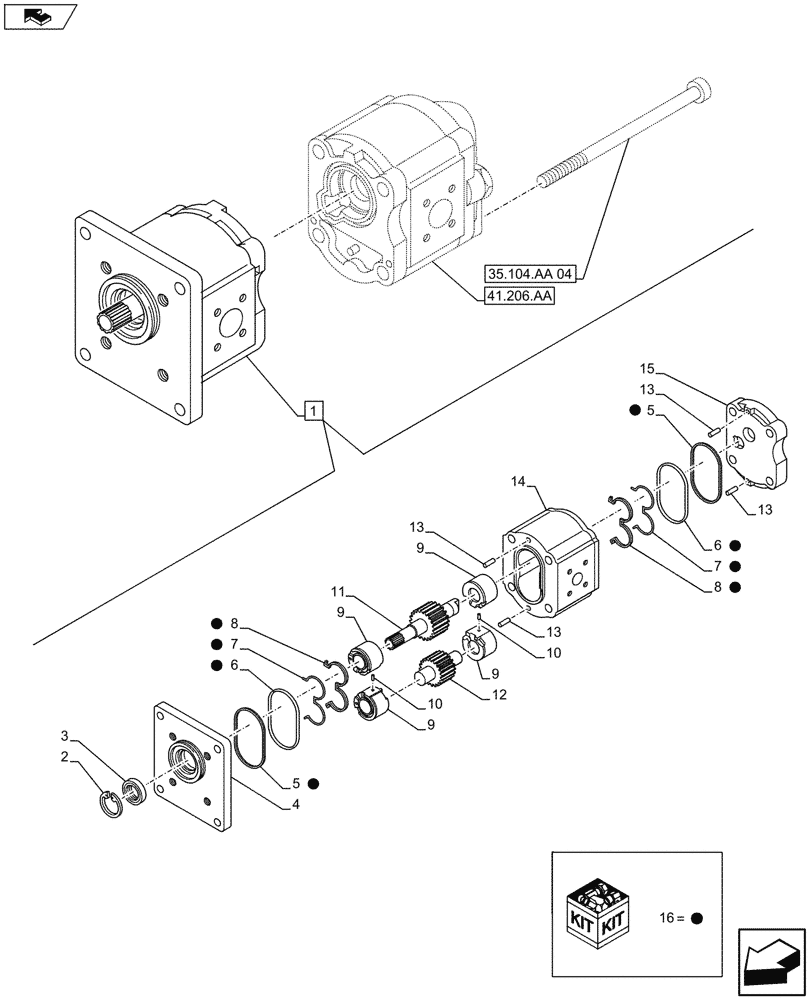

Схема запчастей Case IH FARMALL 115U - (35.104.AA[05]) - STD + VAR - 743911 - REAR LIFT PUMP (25CC), COMPONENTS (35) - HYDRAULIC SYSTEMS
35.104.aa 04
16
6
16
11
13
15
13
9
2
1
13
16
7
9
16
8
16
7
3
10
16
12
4
9
6
home
13
9
5
16
10
8
5
16
14
16
41.206.aa

Артикул

Название

Примечание

Количество

1

47499276

HYDRAULIC PUMP,Gear, 25CC

25CC, Rear Lift, ASSY, Incl 2 - 16

1шт.

2

11058870

CIRCLIP,30mm ID

1шт.

3

87311809

SEAL

1шт.

4

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, Incl in 16

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Incl in 16

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Incl in 16

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Incl in 16

1шт.

9

NSS

NOT SOLD SEPARAT

Bushing, Inci in 1

4шт.

10

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

2шт.

11

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

4шт.

14

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

16

87493116

SEAL KIT

1шт.

Выбрано товаров: 16
