(35.104.AA[04]) - STD + VAR - 743911 - HYDRAULIC PUMP (60 L/MIN), COMPONENTS

Запчасти Case IH FARMALL 115U (35.104.AA[04]) - STD + VAR - 743911 - HYDRAULIC PUMP (60 L/MIN), COMPONENTS (35) - HYDRAULIC SYSTEMS

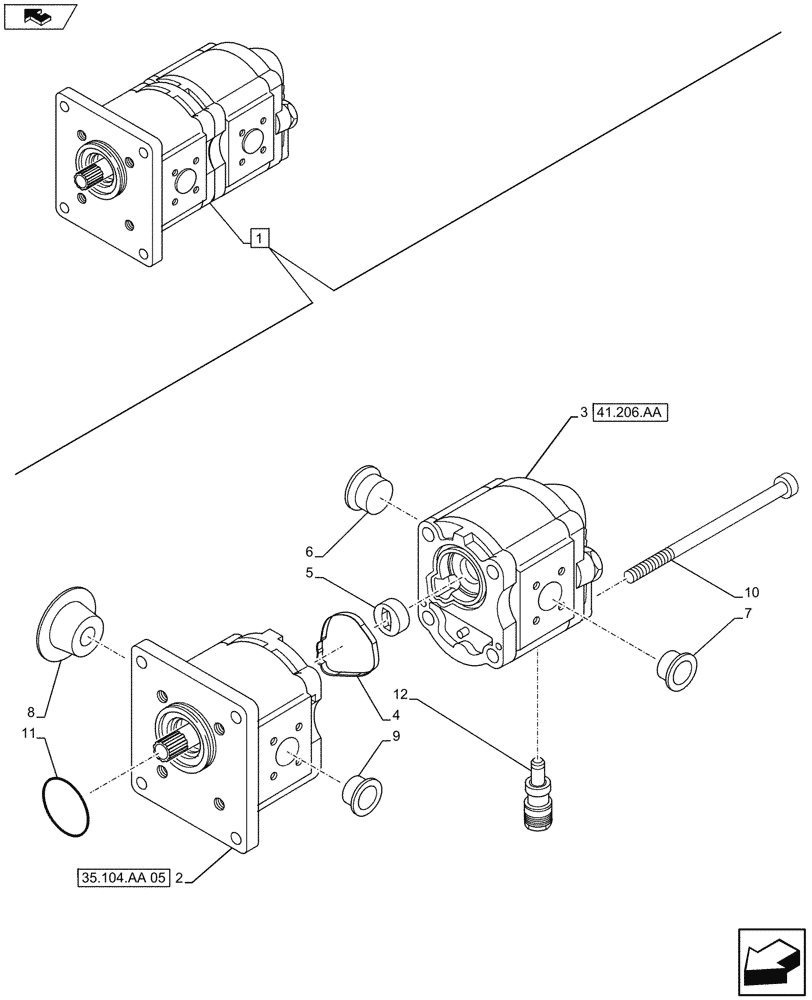

Схема запчастей Case IH FARMALL 115U - (35.104.AA[04]) - STD + VAR - 743911 - HYDRAULIC PUMP (60 L/MIN), COMPONENTS (35) - HYDRAULIC SYSTEMS
41.206.aa
5
6
9
2
10
11
12
7
4
8
3
home
1
35.104.aa 05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47456762

HYDRAULIC PUMP,Double Gear, 14CC / 25CC

25CC/14CC, ASSY, Incl 2 - 12

1шт.

See Hydraulic Pump Components also in Figures 35.104.AA 05, 41.206.AA

1шт.

1

47456762R

REMAN-HYD PUMP

25CC/14CC, ASSY

1шт.

1

47456762C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

47499276

HYDRAULIC PUMP,Gear, 25CC

ASSY, 25CC, Rear Lift

1шт.

3

47499277

HYDRAULIC PUMP,Gear, 14CC

ASSY, 14CC, Power Steering

1шт.

4

47499278

OIL SEAL

1шт.

5

87311810

BUSHING

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

10

87601756

SCREW,M10 x 205mm

4шт.

11

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

12

47499279

VALVE PRESSURE RELIE

1шт.
