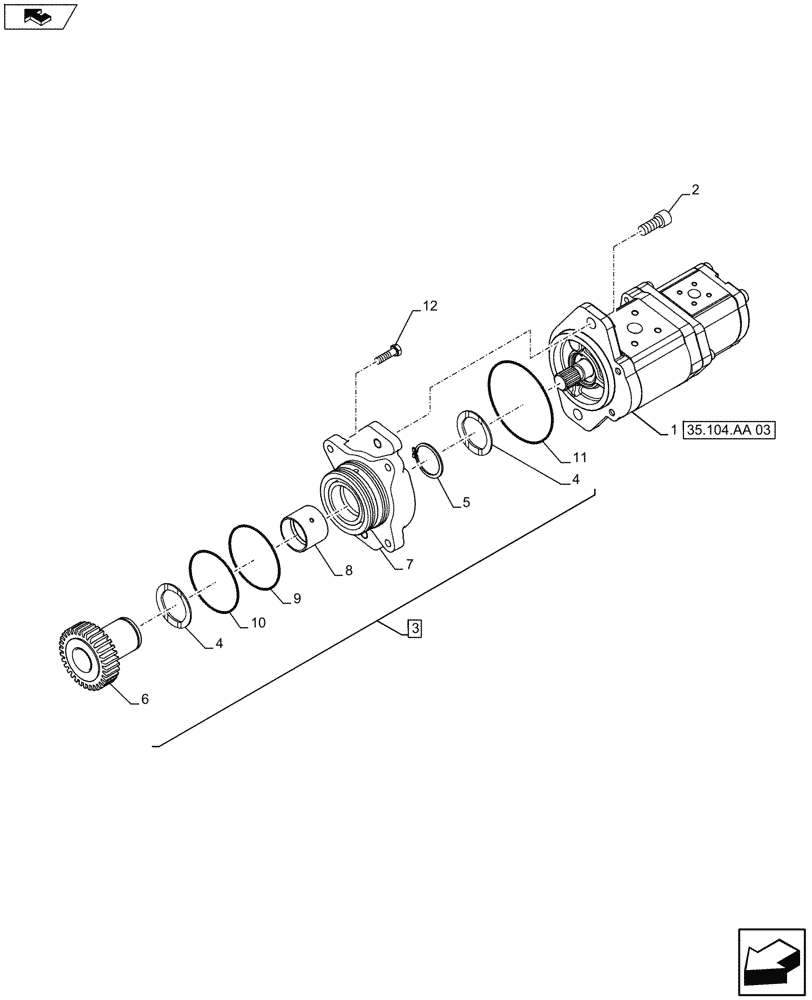

Запчасти Case IH FARMALL 115U (35.104.AA[02]) - VAR - 331690 - HYDRAULIC PUMP (80 L/MIN) (35) - HYDRAULIC SYSTEMS

1

84248992

HYDRAULIC PUMP

ASSY, Years: -09-MAR-13

1шт.

1

47456761

HYDRAULIC PUMP,29.62 CC

ASSY, Start Year: 10-MAR-13

1шт.

2

14331121

HEX SOC SCREW,M12 x 1.25 x 30mm, Cl 8.8, Full Thd

, Years: -09-MAR-13

2шт.

2

14422021

HEX SOC SCREW,M12 x 30mm, Cl 8.8

, Start Year: 10-MAR-13

2шт.

3

84529396

DRIVE

ASSY, Incl 4 - 10

1шт.

4

84529401

WASHER,18mm ID x 42mm OD x 1.8mm Thk

2шт.

5

11068976

SNAP RING,M42, Ext

1шт.

6

84414878

PTO SHAFT,80.3mm L, 32T

1шт.

7

NSS

NOT SOLD SEPARAT

Drive, Incl in 3

1шт.

8

84529392

BUSHING,142.03mm ID x 145.97mm OD x 35mm L

1шт.

9

14465381

O-RING,3.109" ID x 3.387" OD x 0.139"

1шт.

10

14465281

O-RING,2.984" ID x 3.262" OD x 0.139"

1шт.

11

14461380

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

12

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

3шт.
