Запчасти Case IH FARMALL 115U (33.224.AM[02]) - VAR - 330335, 331335 - COMPRESSOR, LUBRICATION LINE, DELIVERY PIPE, ISO (33) - BRAKES & CONTROLS

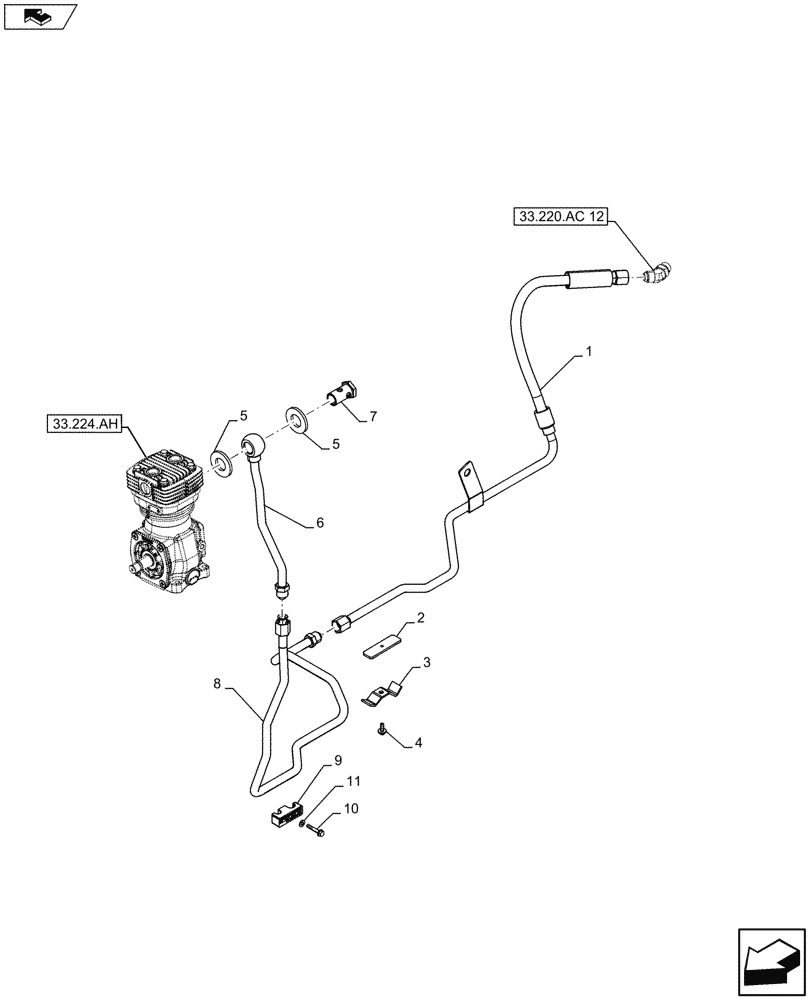

Схема запчастей Case IH FARMALL 115U - (33.224.AM[02]) - VAR - 330335, 331335 - COMPRESSOR, LUBRICATION LINE, DELIVERY PIPE, ISO (33) - BRAKES & CONTROLS
33.224.ah
home
4
6
11
7
5
8
9
5
10
1
2
3
33.220.ac 12

Артикул

Название

Примечание

Количество

1

47452258

HYD TUBE

Delivery Pipe from Air Compressor to Tank

1шт.

2

47452263

BRACKET

1шт.

3

47452264

BRACKET

1шт.

4

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

5

11270960

WASHER,26.3mm ID x 30.9mm OD x 2mm Thk

2шт.

6

47490697

TUBE

Delivery Pipe from Air Compressor to Tank

1шт.

7

87622367

BANJO BOLT

1шт.

8

47452256

PIPE

Delivery Pipe from Air Compressor to Tank

1шт.

9

87694267

BLOCK

1шт.

10

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

1шт.

11

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

Выбрано товаров: 11
