Запчасти Case IH FARMALL 115U (33.224.AM[01]) - VAR - 330335, 331335 - COMPRESSOR, LUBRICATION LINE, ISO (33) - BRAKES & CONTROLS

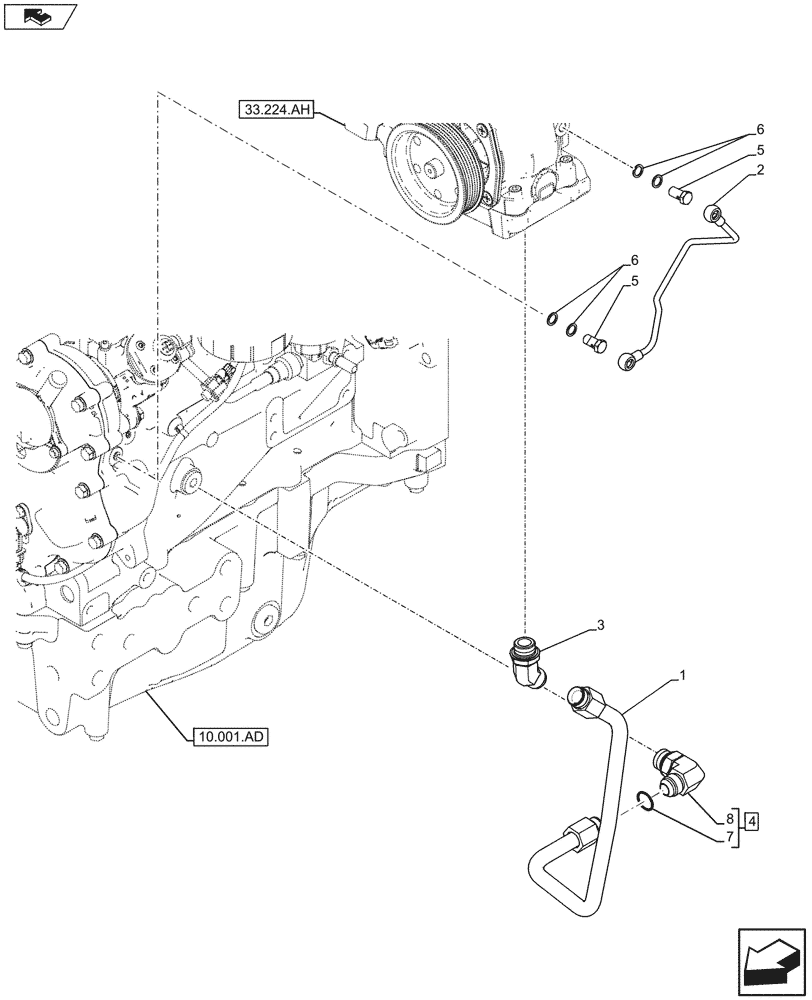

Схема запчастей Case IH FARMALL 115U - (33.224.AM[01]) - VAR - 330335, 331335 - COMPRESSOR, LUBRICATION LINE, ISO (33) - BRAKES & CONTROLS
33.224.ah
2
5
3
4
1
home
7
6
6
5
8
10.001.ad

Артикул

Название

Примечание

Количество

1

47380530

TUBE

Air Compressor Oil Supply port to Engine

1шт.

2

47380529

TUBE

Air Compressor Oil Drain port to Engine

1шт.

3

87802837

ELBOW,45 Deg, 7/8-14 x M22 x 1.5 ORB

1шт.

4

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

ASSY, Incl 7, 8

1шт.

5

11903814

BANJO BOLT,M10 x 1.25 x 19mm

, Years: -13-JAN-13

2шт.

5

11904111

BANJO BOLT,M10 x 1 x 19mm

, Start Year: 14-JAN-13

2шт.

6

10260160

SEAL,M10.2 x 14 x 1

4шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

Выбрано товаров: 9
