(33.220.AC[10A]) - VAR - 330335, 331335 - BRAKE LINE W/ HYDRAULIC TRAILER BRAKE VALVE & AIR BRAKE, ISO - BEGIN YR 19-APR-2013

Запчасти Case IH FARMALL 115U (33.220.AC[10A]) - VAR - 330335, 331335 - BRAKE LINE W/ HYDRAULIC TRAILER BRAKE VALVE & AIR BRAKE, ISO - BEGIN YR 19-APR-2013 (33) - BRAKES & CONTROLS

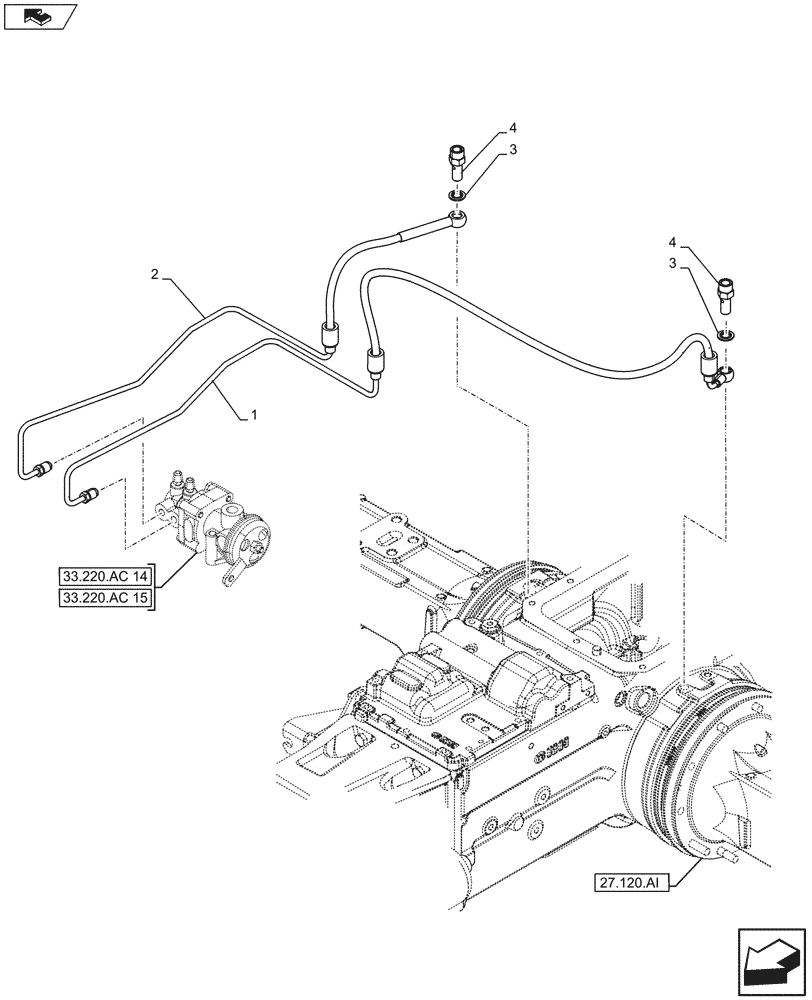

Схема запчастей Case IH FARMALL 115U - (33.220.AC[10A]) - VAR - 330335, 331335 - BRAKE LINE W/ HYDRAULIC TRAILER BRAKE VALVE & AIR BRAKE, ISO - BEGIN YR 19-APR-2013 (33) - BRAKES & CONTROLS
27.120.ai
1
2
3
4
3
home
4
33.220.ac 14
33.220.ac 15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47564797

HYD TUBE

LH Brake to Control Valve

1шт.

2

47372686

HYD TUBE

RH Brake to Control Valve

1шт.

3

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

4

47372669

BANJO BOLT

2шт.

Выбрано товаров: 4
