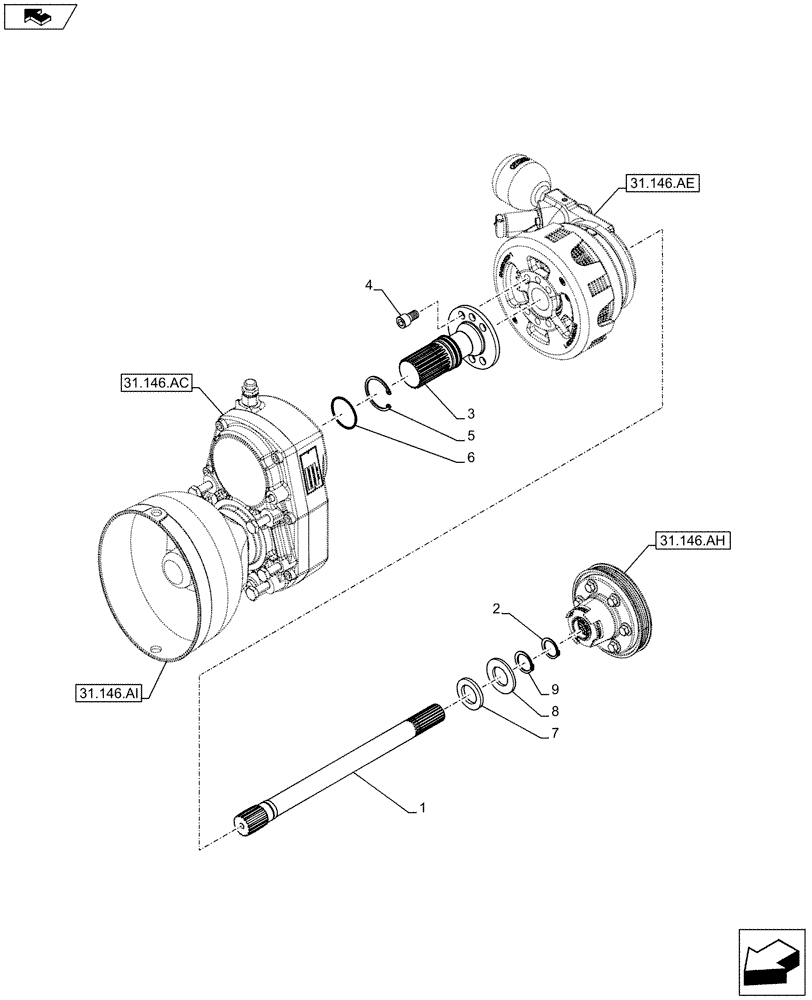

Запчасти Case IH FARMALL 115U (31.146.AA) - VAR - 332789 - FRONT PTO ASSY, DRIVE, DRIVE SHAFT (31) - IMPLEMENT POWER TAKE OFF

1

47437763

DRIVE SHAFT

Drive

1шт.

2

300629

SNAP RING,M28, Ext

D= 28 mm

1шт.

3

84548419

SHAFT

1шт.

4

84603135

HEX SOC SCREW,M12 x 1.25 x 20mm, Cl 12.9

6шт.

5

370011

CIRCLIP,M52 x 2mm Thk, Internal

1шт.

6

9820460

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

7

47461145

SPACER,31mm ID x 50mm OD x 5mm L

1шт.

8

86511329

WASHER,31mm ID x 56mm OD x 4mm Thk

1шт.

9

370003

SNAP RING,M30, External

1шт.
