Запчасти Case IH FARMALL 115U (31.142.AF[02]) - VAR - 332789 - FRONT PTO, HYDR LINES (31) - IMPLEMENT POWER TAKE OFF

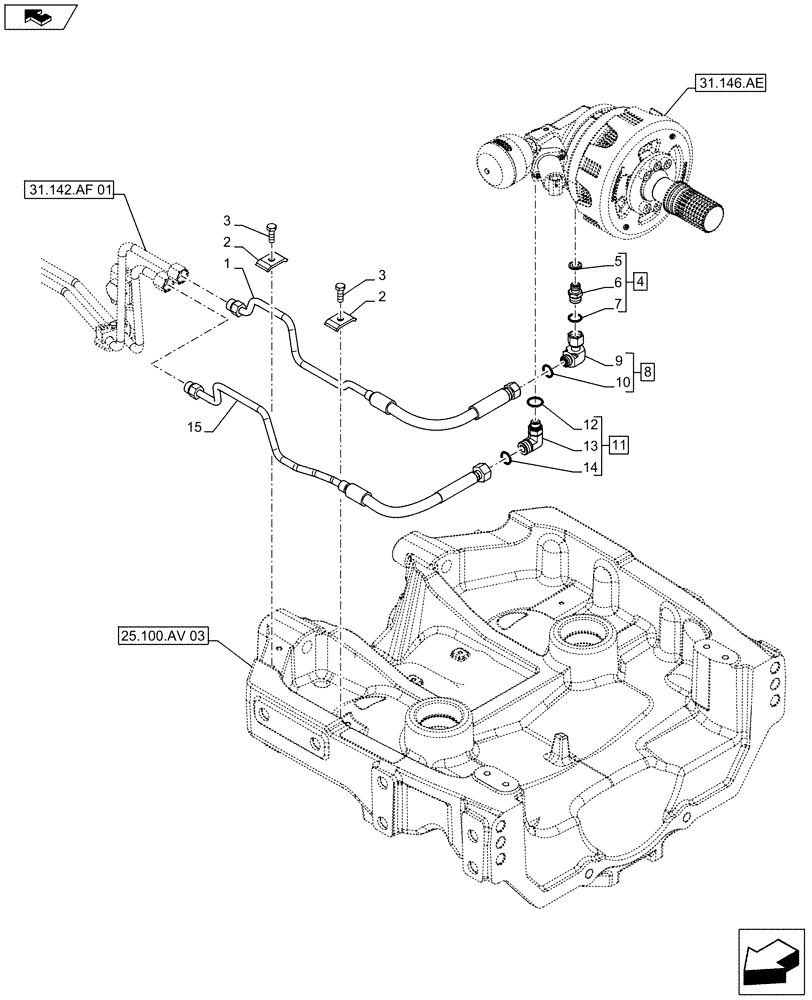

Схема запчастей Case IH FARMALL 115U - (31.142.AF[02]) - VAR - 332789 - FRONT PTO, HYDR LINES (31) - IMPLEMENT POWER TAKE OFF
31.146.ae
2
3
12
7
14
1
4
8
11
2
10
9
13
15
5
3
6
31.142.af 01
25.100.av 03
home

Артикул

Название

Примечание

Количество

1

84413191

HYDRAULIC HOSE

Feed PTO

1шт.

2

84519154

HOSE CLAMP

2шт.

3

16043680

BOLT,Hex, M8 x 1.25 x 25mm, Full Thd

2шт.

4

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

ASSY, Incl 5 - 7

1шт.

5

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

Incl in 4

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Incl in 4

1шт.

8

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Incl in 8

1шт.

11

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

ASSY, Incl 12 - 14

1шт.

12

14437785

O-RING,11.3mm ID x 2.4mm

Incl in 11

1шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

14

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

Incl in 11

1шт.

15

84413193

HYD TUBE

Return

1шт.

Выбрано товаров: 15
