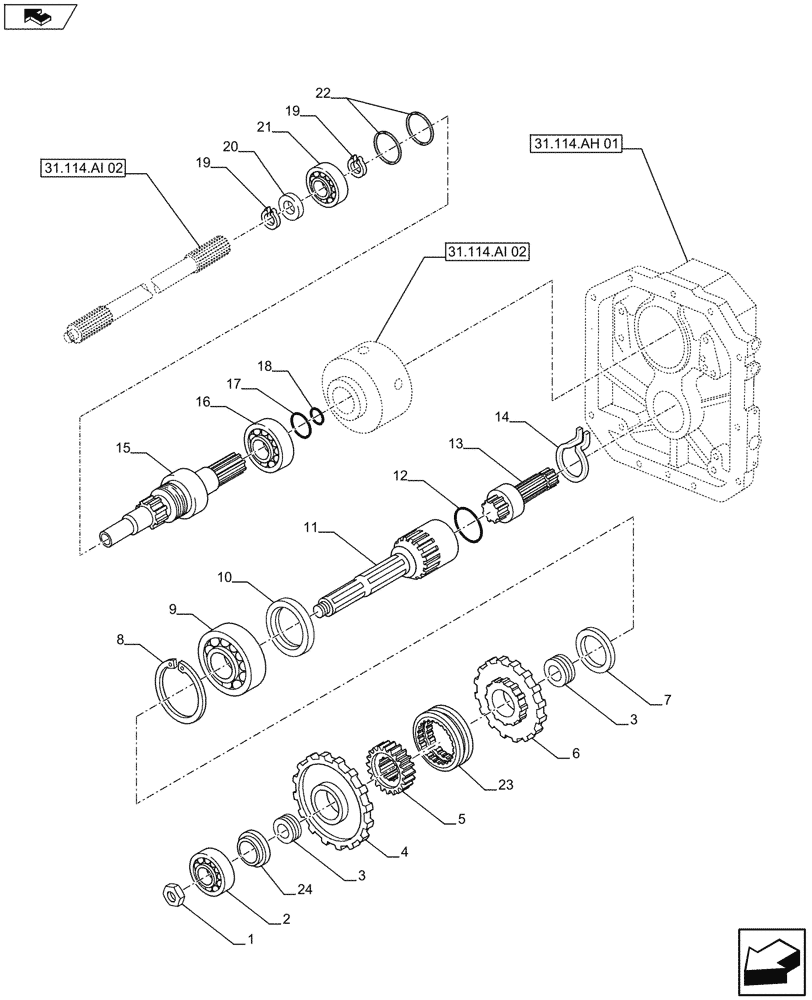

Запчасти Case IH FARMALL 115U (31.114.AP[02]) - STD + VAR - 391727 - PTO 540/1000 RPM, SHAFT & GEAR, NA (31) - IMPLEMENT POWER TAKE OFF

1

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

2

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

3

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

2шт.

4

84483099

GEAR,24T/ 61T

Driven 540RPM

1шт.

5

5171264

GEAR,14T Internal / 24T External

1шт.

6

84483100

GEAR,52T/ 90T

Driven 1000RPM

1шт.

7

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

8

11062476

SNAP RING,M90, Int

1шт.

9

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

10

5165976

OIL SEAL,60mm ID x 80mm OD x 10mm Thk

1шт.

11

5198353

SHAFT

Driven PTO 540/1000 RPM

1шт.

12

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

13

47133081

PTO SHAFT

540RPM, 6 Splines

1шт.

13

47133076

PTO SHAFT,162mm L

1000RPM, 20 Splines

1шт.

14

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

15

84492914

PTO SHAFT

1шт.

16

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

1шт.

17

14455080

O-RING,50.52mm ID x 1.78mm

1шт.

18

14454680

O-RING,1.489" ID x 0.07" Width

1шт.

19

11068876

SNAP RING,M40, Ext

2шт.

20

4996869

THRUST WASHER,40.1mm ID x 62mm OD x 5mm Thk

1шт.

21

28995900

BALL BEARING,45mm ID x 100mm OD x 25mm W

1шт.

22

5175996

RETAINER

2шт.

23

5145798

SYNCHRONIZER,24T

1шт.

24

5175996

RETAINER

1шт.
