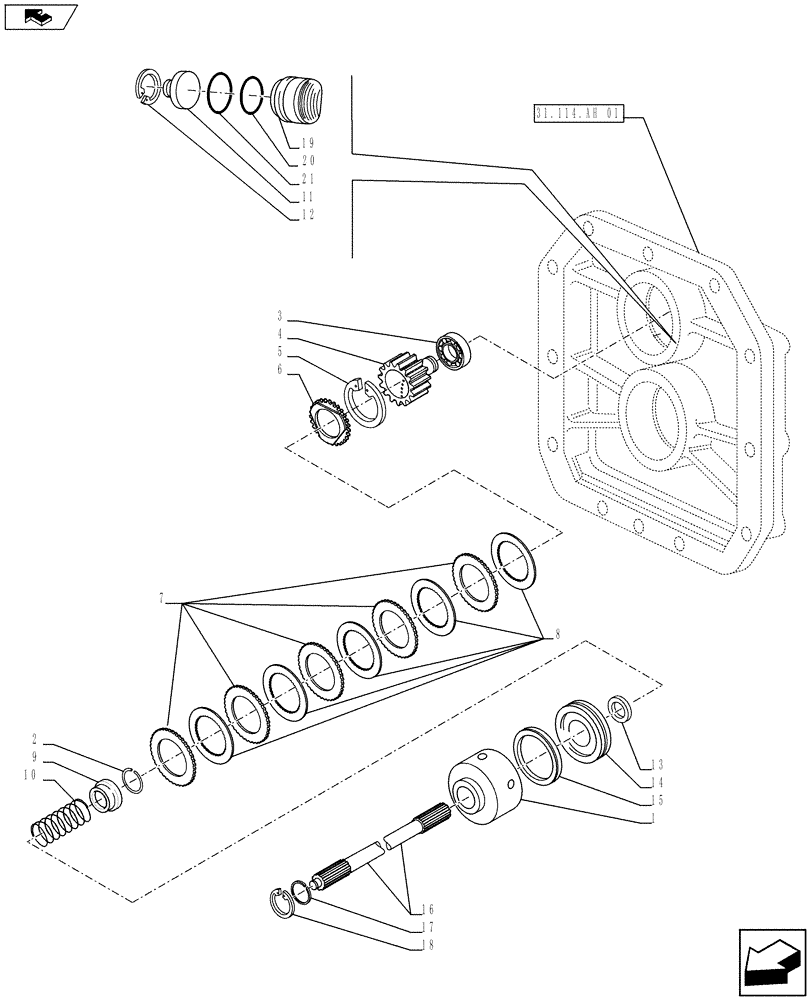

Запчасти Case IH FARMALL 115U (31.114.AI[02]) - STD + VAR - 391727 - PTO 540/1000 RPM, CLUTCH PLATE (31) - IMPLEMENT POWER TAKE OFF

1

5189184

HOUSING

1шт.

2

13399376

SNAP RING,M50, Int

1шт.

3

24905130

BALL BEARING,45 mm ID x 75 mm OD x 16 mm

1шт.

4

87650342

HUB

1шт.

5

5124067

CIRCLIP

1шт.

6

87651625

CLUTCH PLATE

1шт.

7

5189182

CLUTCH PLATE,98.8mm ID x 139.11mm OD x 2.3mm Thk

5шт.

8

5165951

CLUTCH PLATE

5шт.

9

5193205

RETAINER CUP

1шт.

10

5171681

SPRING,Compression, 79mm OD x 61mm L

1шт.

11

5165946

DISC

1шт.

12

11060176

CIRCLIP,M45 x 1.75mm Thk, Int

1шт.

13

5137564

SEAL,48.55mm ID x 56mm OD x 3.2mm Thk

1шт.

14

87650341

PISTON

1шт.

15

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

1шт.

16

5176739

SHAFT

1шт.

17

13398176

SNAP RING,M24, Int

1шт.

18

11067276

SNAP RING,M24, Ext

1шт.

19

5165953

PISTON

1шт.

20

14458480

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

1шт.

21

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.
