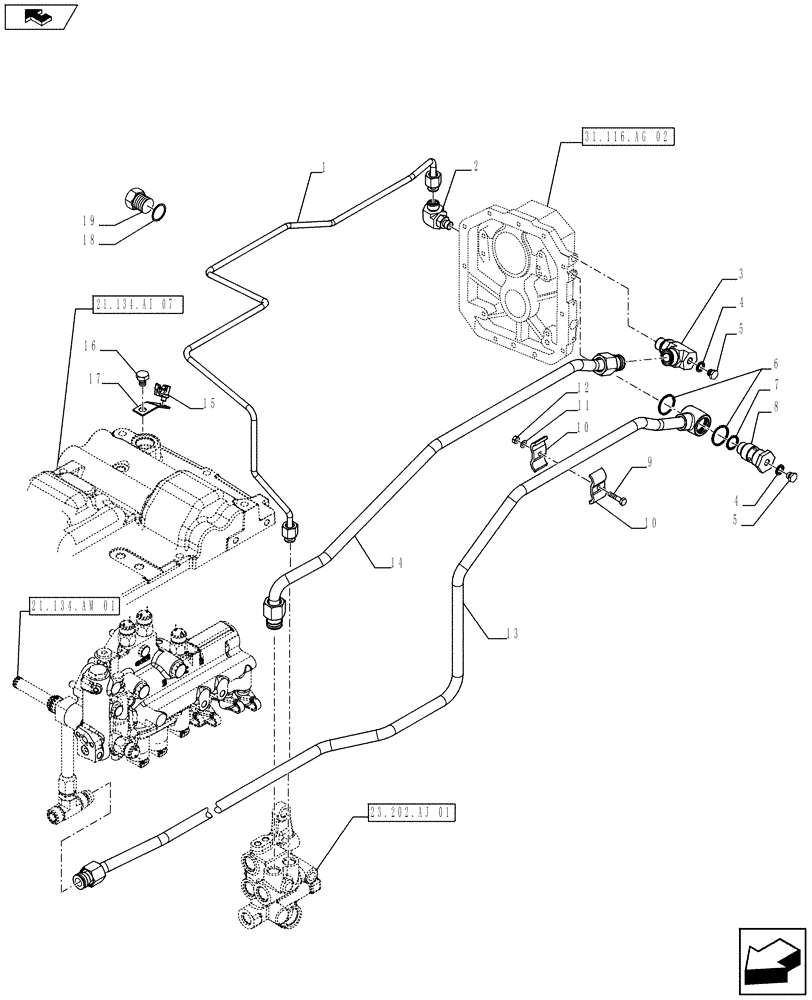

Запчасти Case IH FARMALL 115U (31.104.BH[02]) - VAR - 331819 - PTO 540/540E/1000 RPM, HYDR LINES, W/ GROUND SPEED, ISO (31) - IMPLEMENT POWER TAKE OFF

1

84486917

PIPE

1шт.

2

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

1шт.

3

47436776

HYD CONNECTOR

1шт.

4

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

2шт.

5

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.

6

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

8

84520067

HYD CONNECTOR,M18 x 1.5 x 47.5mm

1шт.

9

10902724

SCREW,Hex, M6 x 28mm, Cl 8.8, Full Thd

1шт.

10

44908518

CLAMP

2шт.

11

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

12

15896214

NUT,M6, Cl 8

1шт.

13

84520064

PIPE

1шт.

14

47436927

TUBE

1шт.

15

14571980

SPRING CLIP

1шт.

16

15970121

SCREW,Hex, M10 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

17

84527664

BRACKET

1шт.

18

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

19

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

1шт.
