(31.104.AY[04]) - VAR - 331819 - PTO 540/540E/1000 RPM, SELECTOR, W/ GROUND SPEED, ISO

Запчасти Case IH FARMALL 115U (31.104.AY[04]) - VAR - 331819 - PTO 540/540E/1000 RPM, SELECTOR, W/ GROUND SPEED, ISO (31) - IMPLEMENT POWER TAKE OFF

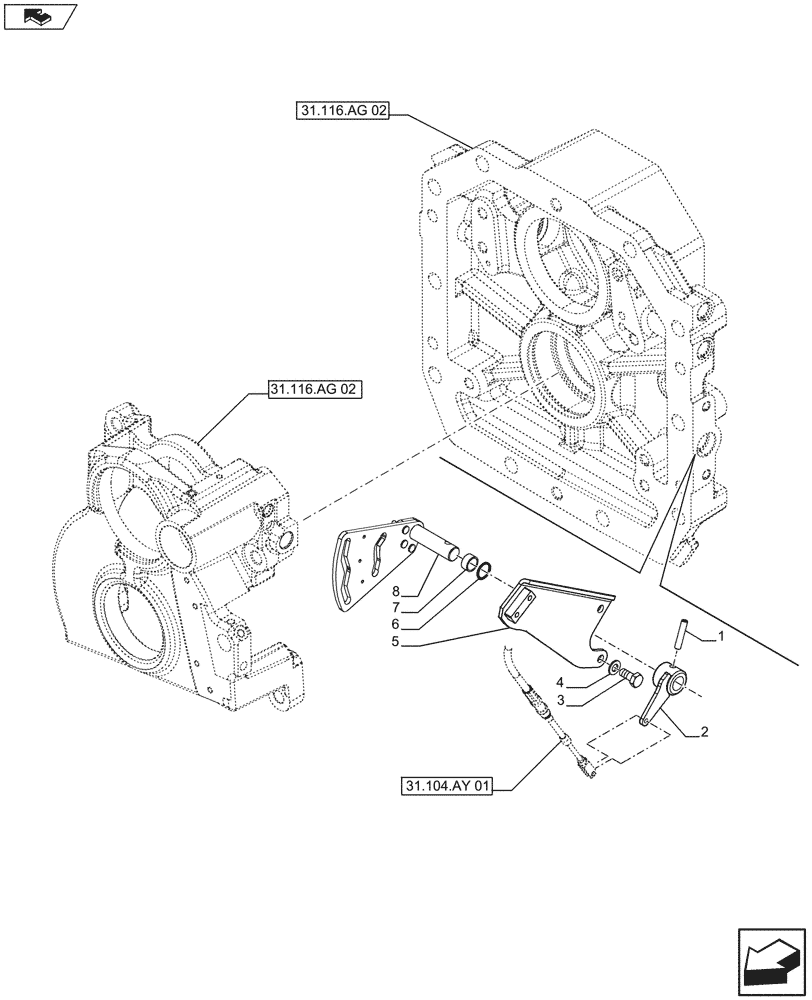

Схема запчастей Case IH FARMALL 115U - (31.104.AY[04]) - VAR - 331819 - PTO 540/540E/1000 RPM, SELECTOR, W/ GROUND SPEED, ISO (31) - IMPLEMENT POWER TAKE OFF
31.104.ay 01
7
8
1
6
home
5
3
2
4
31.116.ag 02
31.116.ag 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

2

84488393

LEVER

1шт.

3

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

5

84488280

BRACKET

1шт.

6

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

7

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

1шт.

8

5162792

SELECTOR

1шт.

Выбрано товаров: 8
