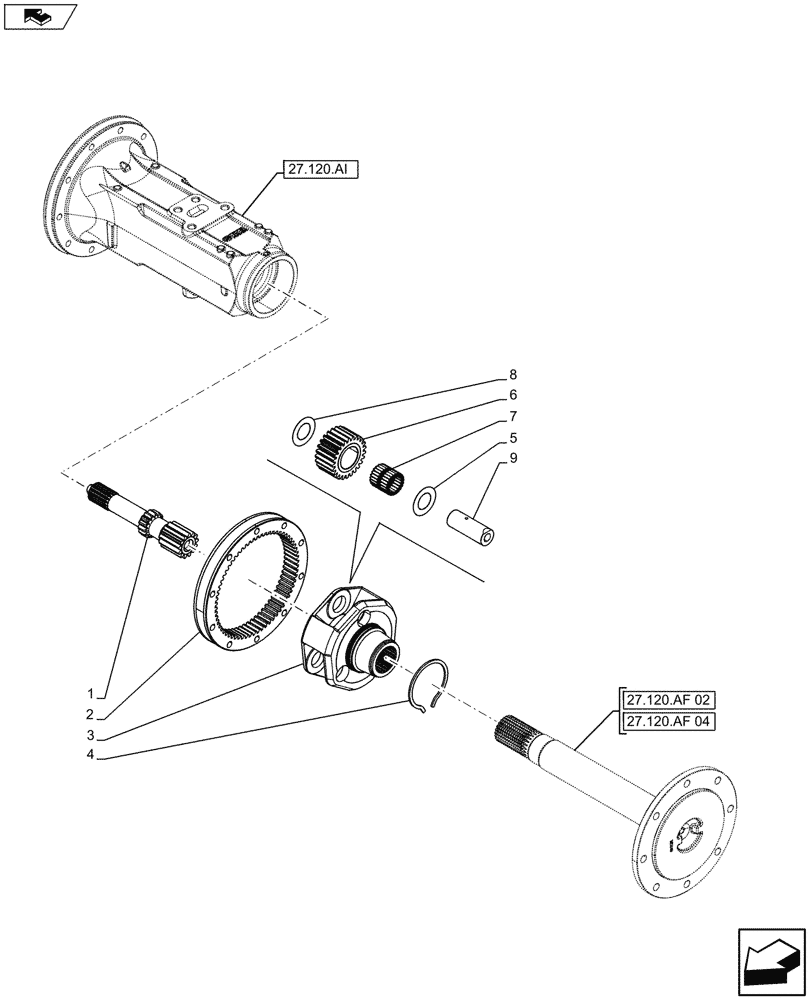

Запчасти Case IH FARMALL 115U (27.120.AF[05]) - VAR - 743932 - FINAL DRIVE, GEARS & SHAFT (27) - REAR AXLE SYSTEM

1

84475944

SUN GEAR

RH

1шт.

1

84475945

SUN GEAR

LH

1шт.

2

84475942

RING GEAR

2шт.

3

5170104

PLANET CARRIER

2шт.

4

5157726

CIRCLIP

D=112mm

2шт.

5

5157720

THRUST WASHER,40mm ID x 70mm OD x 1mm Thk

12шт.

6

84475947

PLANETARY GEAR

6шт.

7

5157719

NEEDLE BEARING,40.15mm ID x 54.15mm OD x 26mm W

6шт.

8

5157718

SPACER,42.5mm ID x 54.05mm OD x 4mm L

6шт.

9

5170095

PIN,40.15mm OD x 108mm L

6шт.
