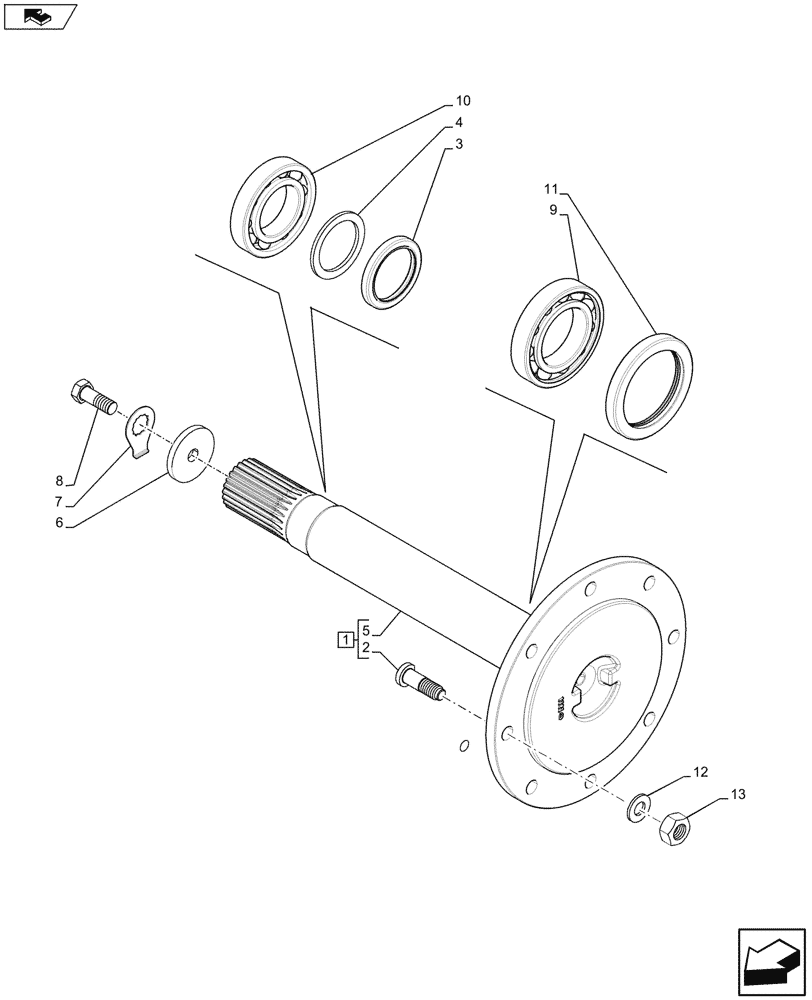

Запчасти Case IH FARMALL 115U (27.120.AF[04A]) - STD + VAR - 743931, 743932 - FINAL DRIVE, AXLE, ISO - BEGIN S/N ZCJR23173 (27) - REAR AXLE SYSTEM

1

84526270

DRIVE AXLE

ASSY, Incl 2, 5

2шт.

D=221mm Rim ID, D=275mm Fixing Holes Distance

1шт.

2

44011089

WHEEL BOLT

M18 x 56

16шт.

3

5112290

OIL SEAL,68mm ID x 90mm OD x 10mm Thk

2шт.

4

4996966

SHIM,4.5mm Thk

1шт.

4

4996968

SHIM,4.7mm Thk

1шт.

4

4996967

SHIM,4.6mm Thk

1шт.

4

4996969

SHIM,4.8mm Thk

1шт.

4

4996970

SHIM,4.9mm Thk

1шт.

4

4996971

SHIM,5.0mm Thk

1шт.

4

4996972

SHIM,5.1mm Thk

1шт.

4

4996973

SHIM,5.2mm Thk

1шт.

4

4996974

SHIM,5.3mm Thk

1шт.

4

4996975

SHIM,5.4mm Thk

1шт.

4

4996976

SHIM,5.5mm Thk

1шт.

4

4996977

SHIM,5.6mm Thk

1шт.

4

4996978

SHIM,5.7mm Thk

1шт.

4

4996979

SHIM,5.8mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

Drive Axle, Incl in 1

2шт.

6

4997201

DISC,16.5mm ID x 70mm OD x 80mm Thk

2шт.

7

5157668

PLATE

2шт.

8

14258031

BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

2шт.

9

84486356

BALL BEARING,130mm OD, Gr -40/+120

75 mm ID x 130 mm OD x 25 mm

2шт.

10

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

2шт.

11

5149310

SEAL,100mm ID x 130mm OD x 16mm Thk

2шт.

12

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.

13

12164224

NUT,M18 x 1.5, Cl 10

16шт.
