Запчасти Case IH FARMALL 115U (27.106.AR) - STD + VAR - 743931, 743932 - DIFFERENTIAL GEAR, SUPPORT (27) - REAR AXLE SYSTEM

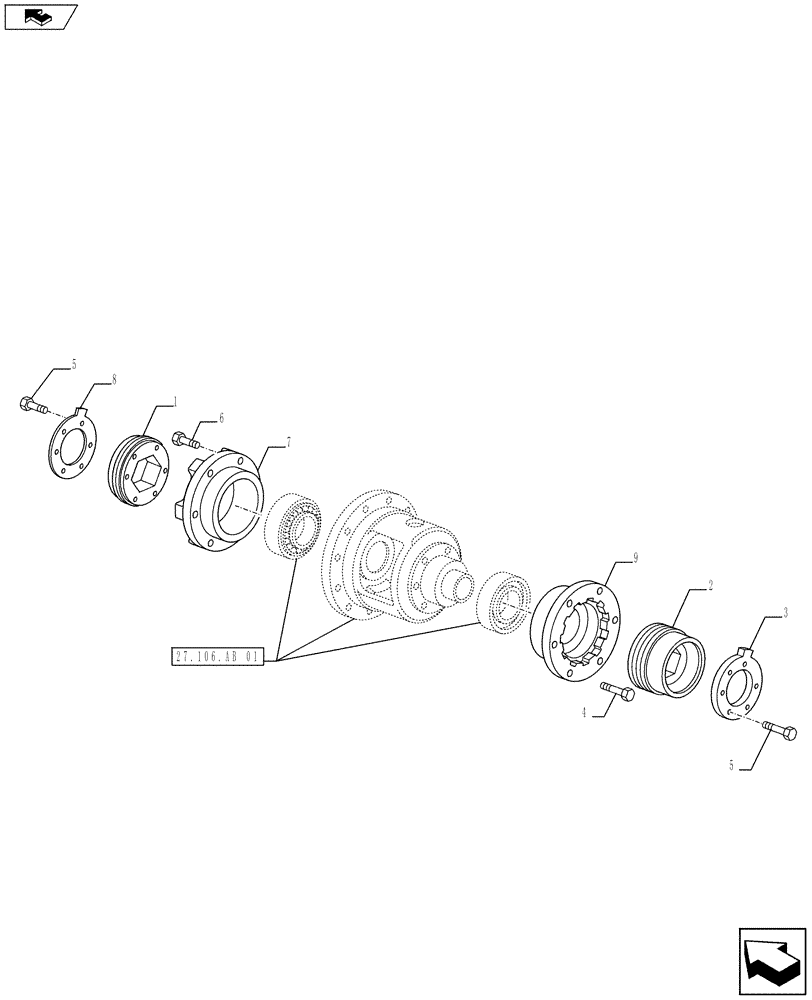

Схема запчастей Case IH FARMALL 115U - (27.106.AR) - STD + VAR - 743931, 743932 - DIFFERENTIAL GEAR, SUPPORT (27) - REAR AXLE SYSTEM
27.106.ab 01
3
4
2
5
7
5
9
1
8
6
home

Артикул

Название

Примечание

Количество

1

5198105

LOCK NUT

RH

1шт.

2

5198104

BEARING LOCK NUT,Hex, M8 x 1.25, Cl 8.8

1шт.

3

5087672

LOCK WASHER,50mm ID x 93mm OD x 4mm Thk

1шт.

4

14233724

LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

5

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

14234024

LOCK BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8

6шт.

7

5181270

SUPPORT

RH

1шт.

8

5198101

NUT

RH

1шт.

9

5181269

SUPPORT

LH

1шт.

Выбрано товаров: 9
