Запчасти Case IH FARMALL 115U (27.106.AO) - VAR - 330308, 330415 - DIFFERENTIAL LOCK, HYDRAULIC LINE, ISO (27) - REAR AXLE SYSTEM

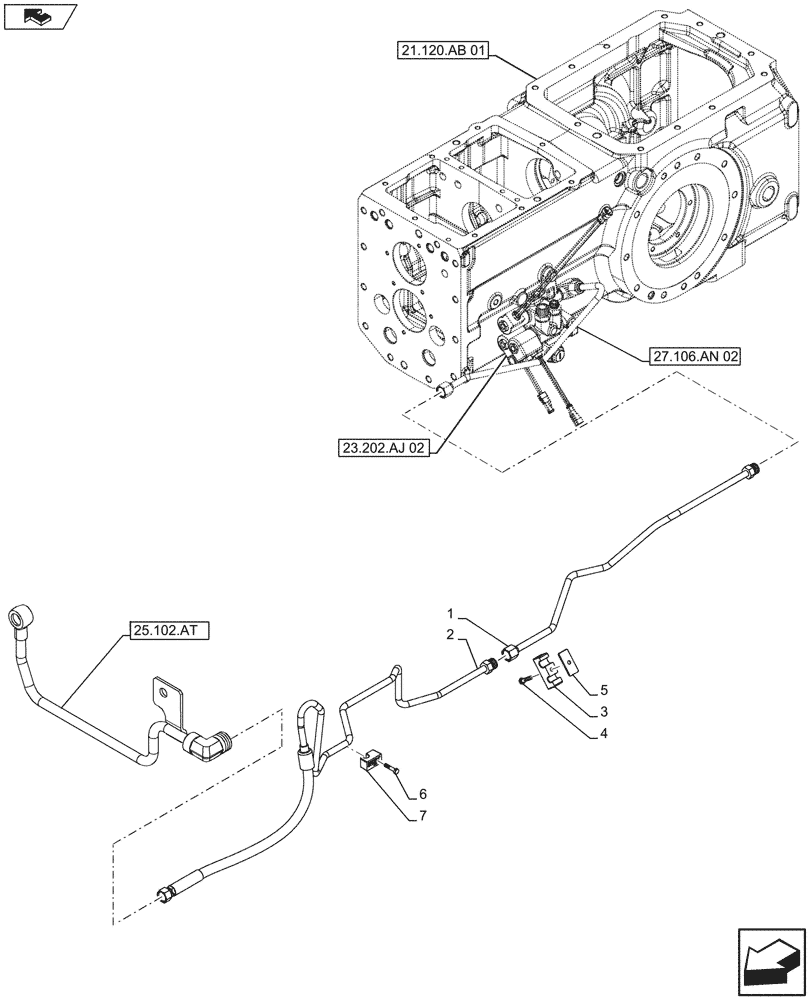

Схема запчастей Case IH FARMALL 115U - (27.106.AO) - VAR - 330308, 330415 - DIFFERENTIAL LOCK, HYDRAULIC LINE, ISO (27) - REAR AXLE SYSTEM
25.102.at
6
4
7
home
2
home
3
5
1
27.106.an 02
23.202.aj 02
21.120.ab 01

Артикул

Название

Примечание

Количество

1

84553848

TUBE

Front Differential Lock

1шт.

2

84549363

HYD TUBE

Front Differential Lock, Years: -13-JAN-13

1шт.

2

47447496

HYD TUBE

Front Differential Lock, Start Year: 14-JAN-13

1шт.

3

87694267

BLOCK

1шт.

4

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

1шт.

5

84554068

BRACKET

1шт.

6

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

2шт.

7

87532290

BRACKET

2шт.

Выбрано товаров: 8
