Запчасти Case IH FARMALL 115U (27.106.AK[01]) - STD + VAR - 743933 - DIFFERENTIAL LOCK, ROD & FORKS (27) - REAR AXLE SYSTEM

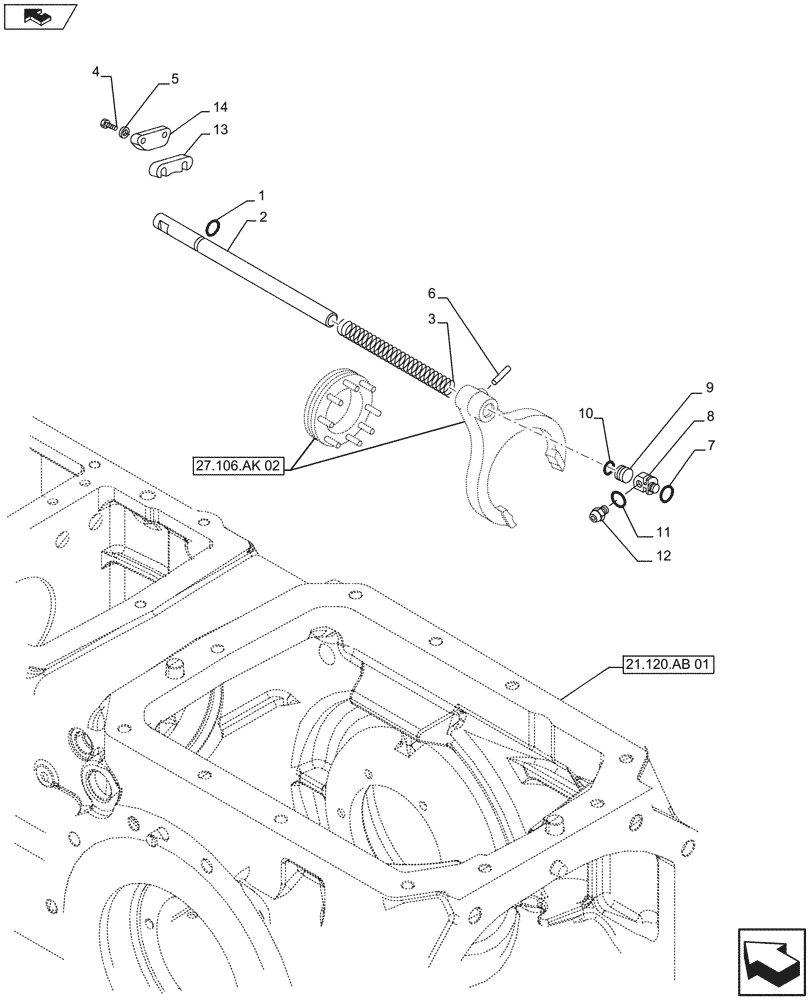

Схема запчастей Case IH FARMALL 115U - (27.106.AK[01]) - STD + VAR - 743933 - DIFFERENTIAL LOCK, ROD & FORKS (27) - REAR AXLE SYSTEM
27.106.ak 02
home
home
8
2
11
14
4
13
10
3
12
7
5
1
9
6
21.120.ab 01

Артикул

Название

Примечание

Количество

1

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

2

5160830

SHAFT

1шт.

3

5162818

SPRING,27.5mm OD x 237mm L

1шт.

4

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

6

13910670

ROLL PIN,M6 x 40mm OAL, Coiled

1шт.

7

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

8

5162820

ELBOW,M18 x 1.5 x 61mm L

1шт.

9

5162819

PISTON

1шт.

10

5160827

SEAL,22.55mm ID x 30.1mm OD x 3.2mm Thk

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

12

5158800

HYD CONNECTOR,M18 x 1.5 x 37.5mm L

1шт.

13

5114582

SHIM,25mm OD x 0.5mm Thk

1шт.

14

5156350

PLATE

1шт.

Выбрано товаров: 14
