Запчасти Case IH FARMALL 115U (27.106.AB[02]) - STD + VAR - 743931, 743932 - DIFFERENTIAL GEAR, PLANETARY HUB, COMPONENTS (27) - REAR AXLE SYSTEM

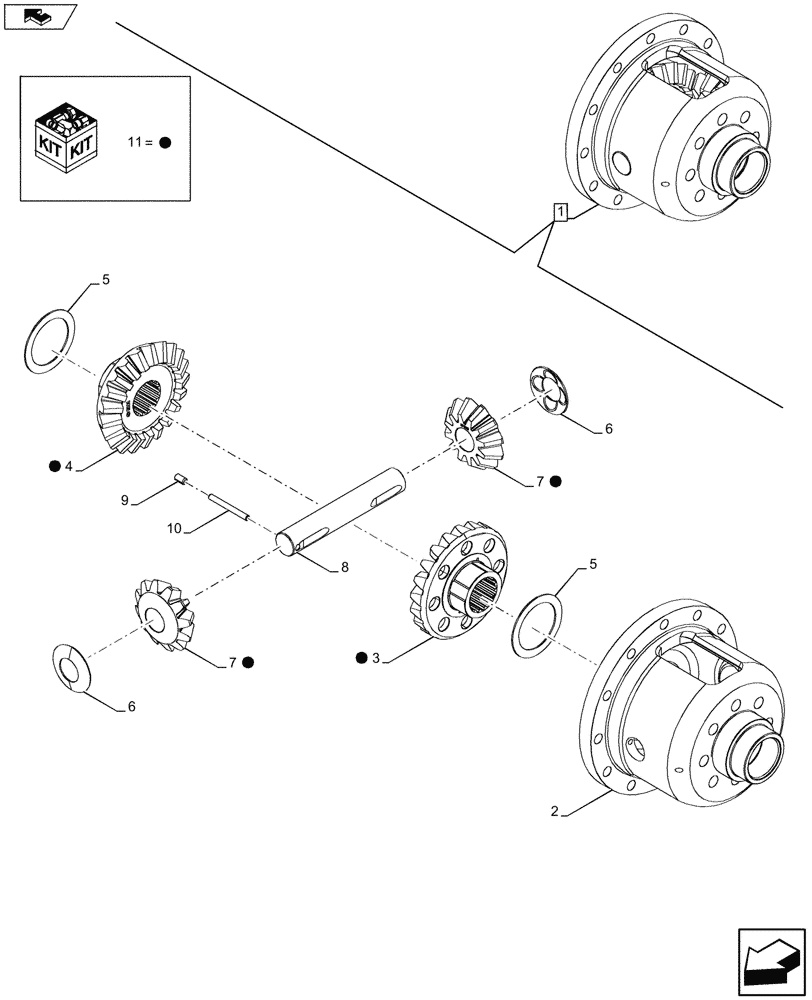

Схема запчастей Case IH FARMALL 115U - (27.106.AB[02]) - STD + VAR - 743931, 743932 - DIFFERENTIAL GEAR, PLANETARY HUB, COMPONENTS (27) - REAR AXLE SYSTEM
5
1
7
5
11
6
8
7
11
11
2
3
9
11
6
10
11
home
4

Артикул

Название

Примечание

Количество

1

87331270

BOX

ASSY, Incl 2 - 11

1шт.

2

87331267

BOX

1шт.

3

4993576

PLANETARY GEAR

LH

1шт.

4

4993577

PLANETARY GEAR

RH

1шт.

5

4993653

THRUST WASHER,60mm ID x 80mm OD x 1.6mm Thk

2шт.

6

4993654

THRUST WASHER,30mm ID x 61mm OD x 1.5mm Thk

2шт.

7

4993578

IDLER PINION

2шт.

8

47135873

PIN,29.96mm OD x 182mm L

1шт.

9

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

10

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

11

87566531

Gears Kit

DIFFERENTIAL

1шт.

Выбрано товаров: 11
