Запчасти Case IH FARMALL 115U (27.106.AB[01]) - STD + VAR - 743931, 743932 - DIFFERENTIAL GEAR, PLANETARY HUB (27) - REAR AXLE SYSTEM

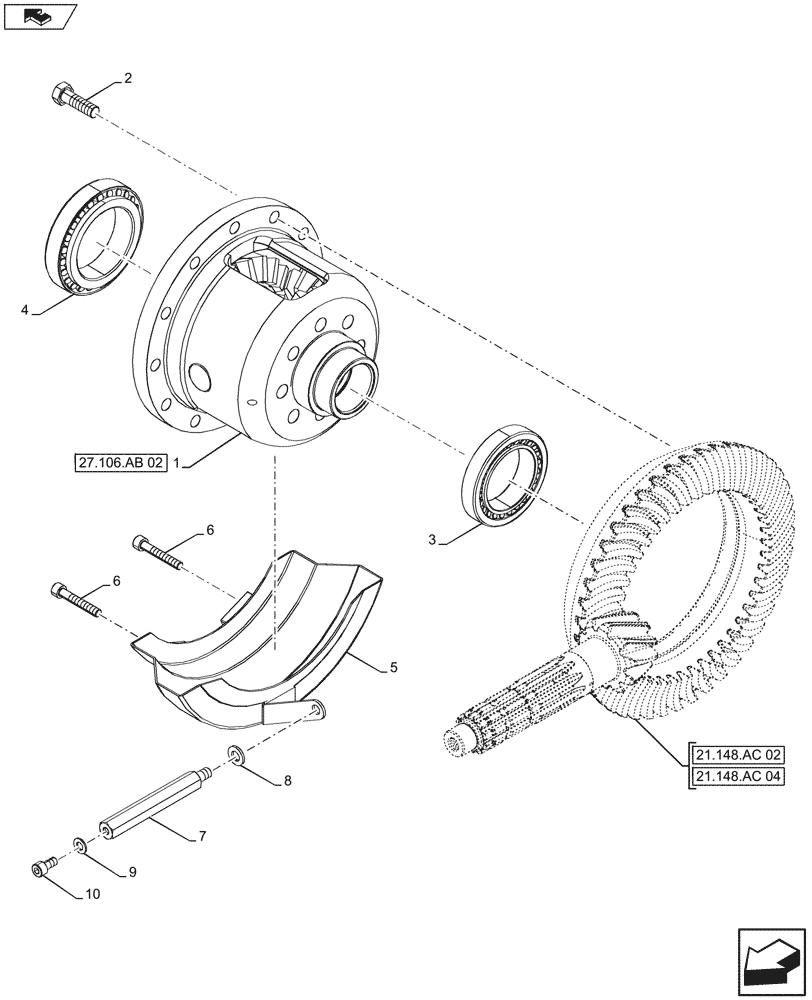

Схема запчастей Case IH FARMALL 115U - (27.106.AB[01]) - STD + VAR - 743931, 743932 - DIFFERENTIAL GEAR, PLANETARY HUB (27) - REAR AXLE SYSTEM
8
7
10
3
9
5
2
6
6
4
1
home
21.148.ac 02
27.106.ab 02
21.148.ac 04

Артикул

Название

Примечание

Количество

1

87331270

BOX

ASSY

1шт.

2

14274731

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9

12шт.

3

87331262

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

1шт.

4

87331315

TAPERED BEARING,75mm ID x 115mm OD x 25mm W

1шт.

5

87498297

SHIELD

1шт.

6

14306921

HEX SOC SCREW,M8 x 50mm, Cl 8.8

2шт.

7

84121742

SCREW,Hex, M10 x 1.25 x 120mm, Cl 5.8

1шт.

8

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

10

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 10
