Запчасти Case IH FARMALL 115U (25.108.AB[01]) - STD + VAR - 390399 - 4WD FRONT AXLE, PLANETARY REDUCER, W/ LIMITED SLIP DIFFERENTIAL (25) - FRONT AXLE SYSTEM

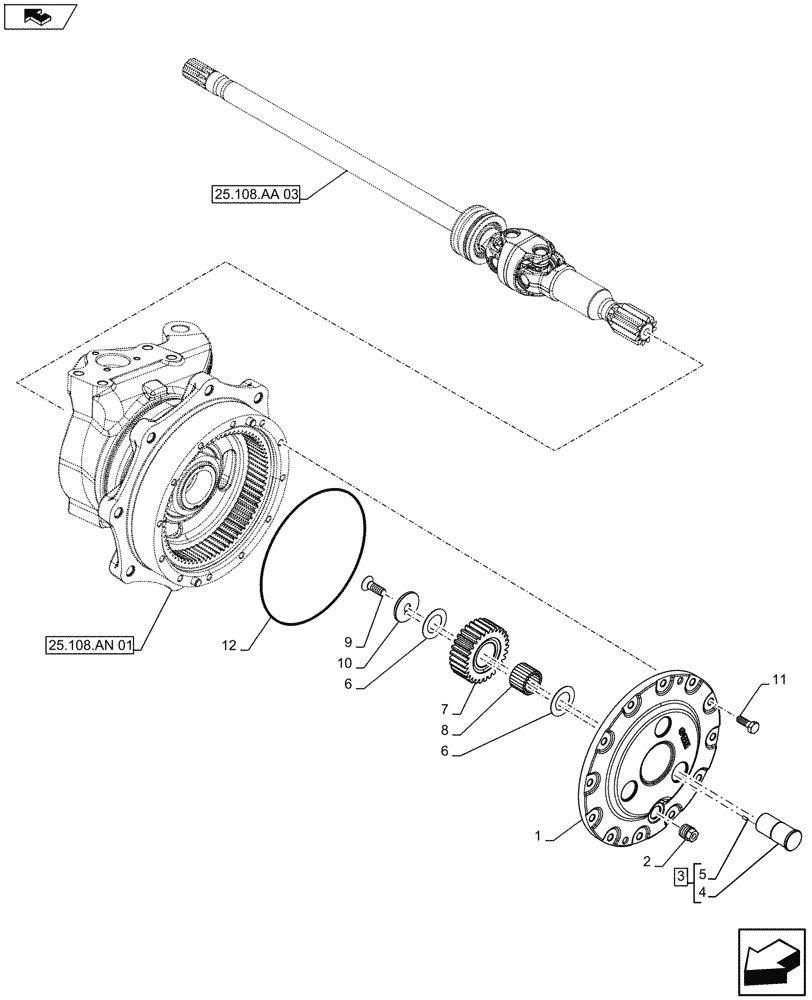

Схема запчастей Case IH FARMALL 115U - (25.108.AB[01]) - STD + VAR - 390399 - 4WD FRONT AXLE, PLANETARY REDUCER, W/ LIMITED SLIP DIFFERENTIAL (25) - FRONT AXLE SYSTEM
25.108.an 01
11
12
4
5
3
1
home
7
6
9
6
8
10
2
25.108.aa 03

Артикул

Название

Примечание

Количество

1

87667235

SUPPORT

2шт.

2

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

3

87471638

PIN

ASSY, Incl 4, 5

6шт.

4

87304540

PIN,30.3mm OD x 68mm L

6шт.

5

10333210

DOWEL,M4 x 10.00mm

6шт.

6

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

7

87383440

IDLER PINION

6шт.

8

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

6шт.

9

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

6шт.

10

87660404

SPACER

6шт.

11

11306934

BOLT,Hex, M10 x 1.25 x 30, 10.9, Full Thd

24шт.

12

9823349

O-RING,0.139" Thk x 9.484" ID, -272, Cl 5, 75 Duro

2шт.

Выбрано товаров: 12
