(25.108.AA[03]) - VAR - 330308 - 4WD FRONT AXLE, HALF SHAFT, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO

Запчасти Case IH FARMALL 115U (25.108.AA[03]) - VAR - 330308 - 4WD FRONT AXLE, HALF SHAFT, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO (25) - FRONT AXLE SYSTEM

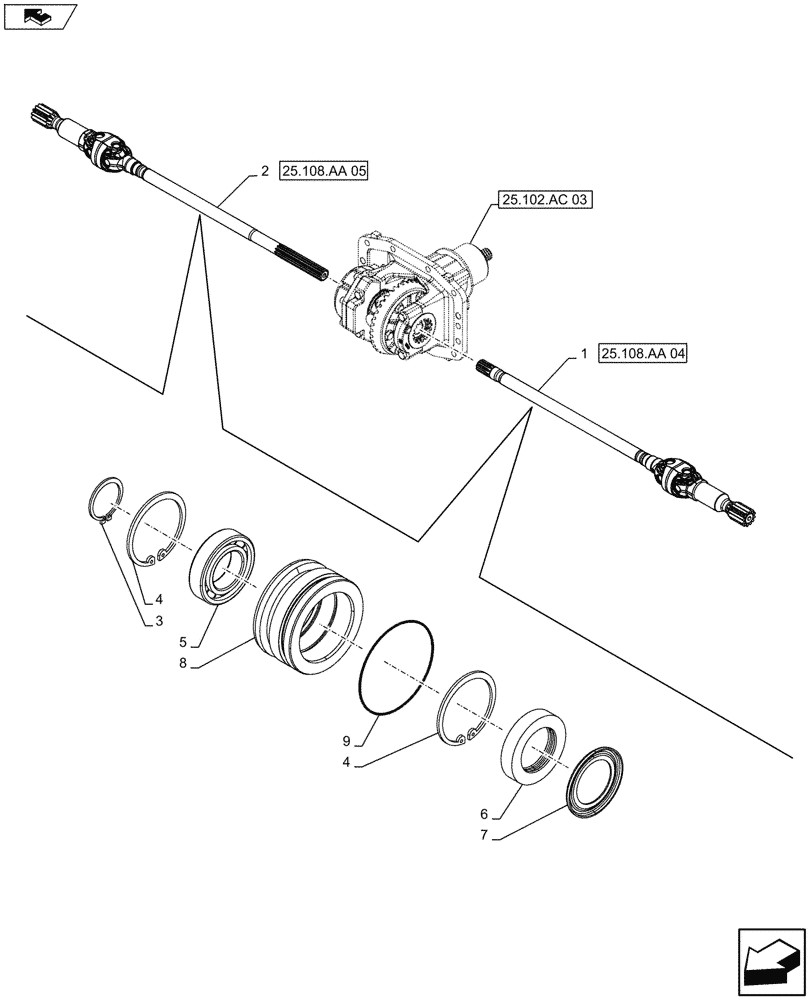

Схема запчастей Case IH FARMALL 115U - (25.108.AA[03]) - VAR - 330308 - 4WD FRONT AXLE, HALF SHAFT, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO (25) - FRONT AXLE SYSTEM
25.108.aa 05
3
home
4
9
2
4
7
6
8
5
1
25.102.ac 03
25.108.aa 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87374566

HALF SHAFT,908.5mm L

LH, ASSY

1шт.

2

87669495

ARTICULATED SHAFT

RH, ASSY

1шт.

3

11067876

SNAP RING,M30, Ext

2шт.

4

11060676

CIRCLIP,M55, Int

4шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

2шт.

6

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

8

87371275

BUSHING,55mm ID x 75mm OD x 38mm L

2шт.

9

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

2шт.
