(25.102.AT) - VAR - 330308, 330415 - DIFFERENTIAL LOCK, PIPE, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO

Запчасти Case IH FARMALL 115U (25.102.AT) - VAR - 330308, 330415 - DIFFERENTIAL LOCK, PIPE, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO (25) - FRONT AXLE SYSTEM

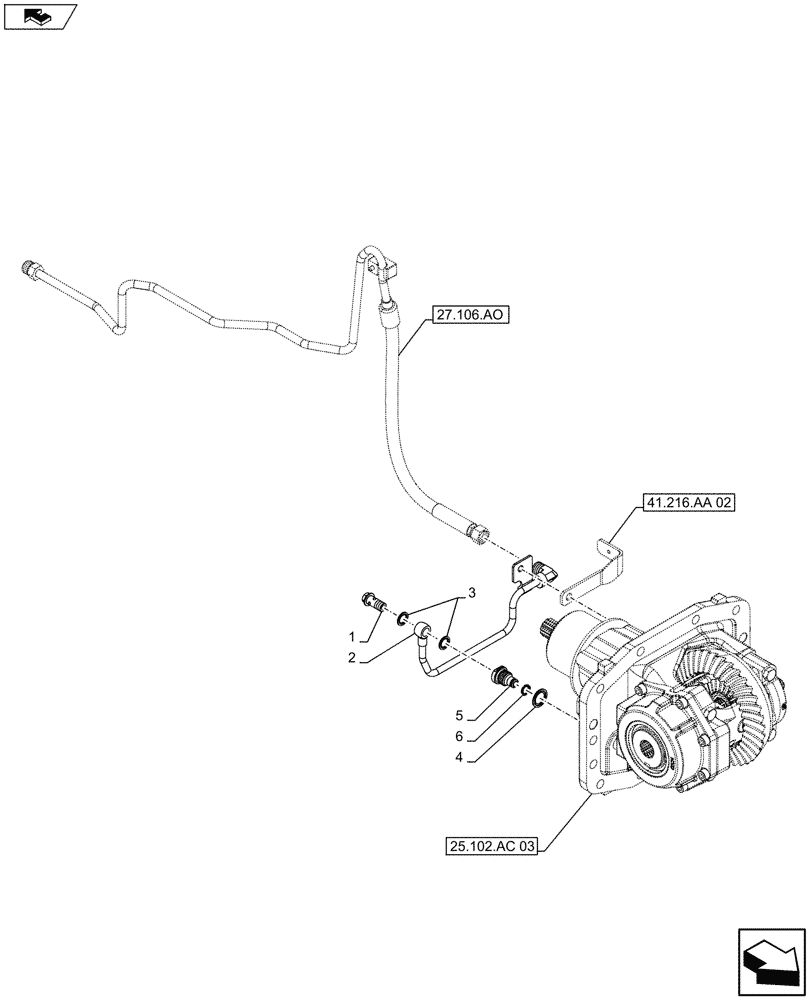

Схема запчастей Case IH FARMALL 115U - (25.102.AT) - VAR - 330308, 330415 - DIFFERENTIAL LOCK, PIPE, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO (25) - FRONT AXLE SYSTEM
41.216.aa 02
home
6
1
5
3
4
2
25.102.ac 03
27.106.ao
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87736840

BOLT,M14 x 1.5 x 30mm

1шт.

2

84519821

TUBE

Differential Lock

1шт.

3

87391188

SEAL,14mm ID x 22mm OD x 1.5mm Thk

2шт.

4

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

5

5167725

HYD CONNECTOR,M14/22 x 1.5 x 38mm L

1шт.

6

81844608

O-RING,11.10mm ID x 1.78mm

1шт.

Выбрано товаров: 6
