(25.100.AD[02]) - VAR - 330308, 330415 - 4WD FRONT AXLE, HOUSING, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO

Запчасти Case IH FARMALL 115U (25.100.AD[02]) - VAR - 330308, 330415 - 4WD FRONT AXLE, HOUSING, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO (25) - FRONT AXLE SYSTEM

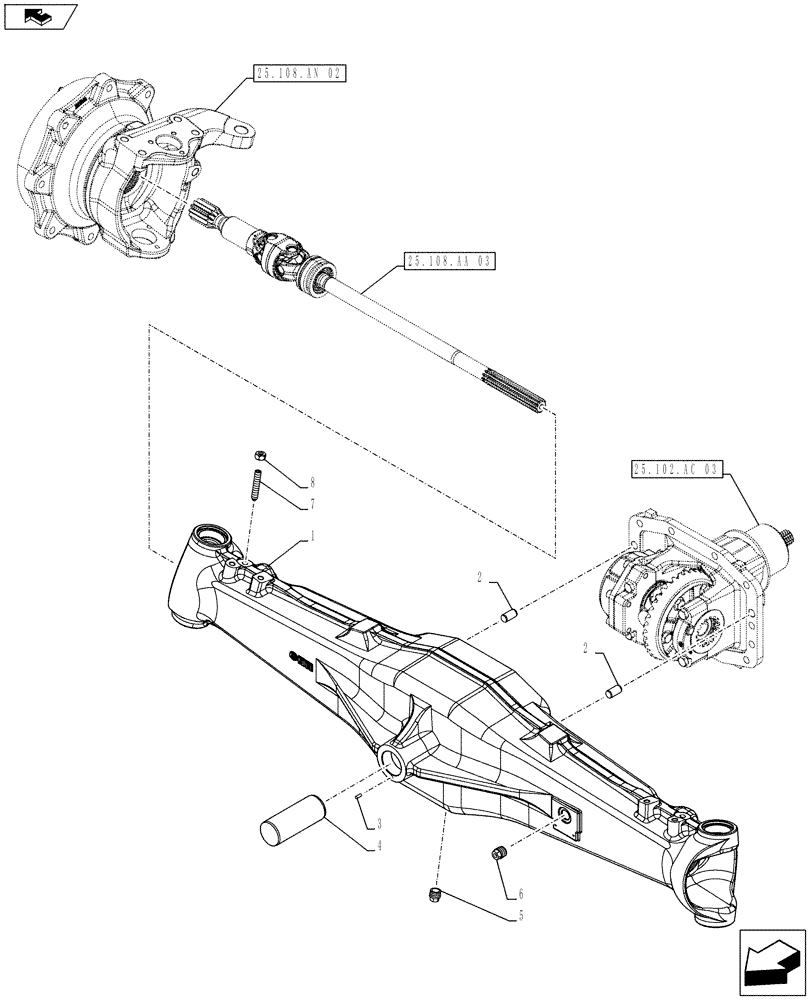

Схема запчастей Case IH FARMALL 115U - (25.100.AD[02]) - VAR - 330308, 330415 - 4WD FRONT AXLE, HOUSING, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO (25) - FRONT AXLE SYSTEM
25.108.an 02
8
3
4
2
6
7
2
5
1
25.102.ac 03
home
25.108.aa 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87660410

BOX

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

4966244

PIN,5mm OD x 15mm L

1шт.

4

47123533

PIN,52mm OD x 131mm L

1шт.

5

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

87309002

SET SCREW

2шт.

8

16101511

NUT,M12 x 1.25, Cl 8

2шт.

Выбрано товаров: 8
