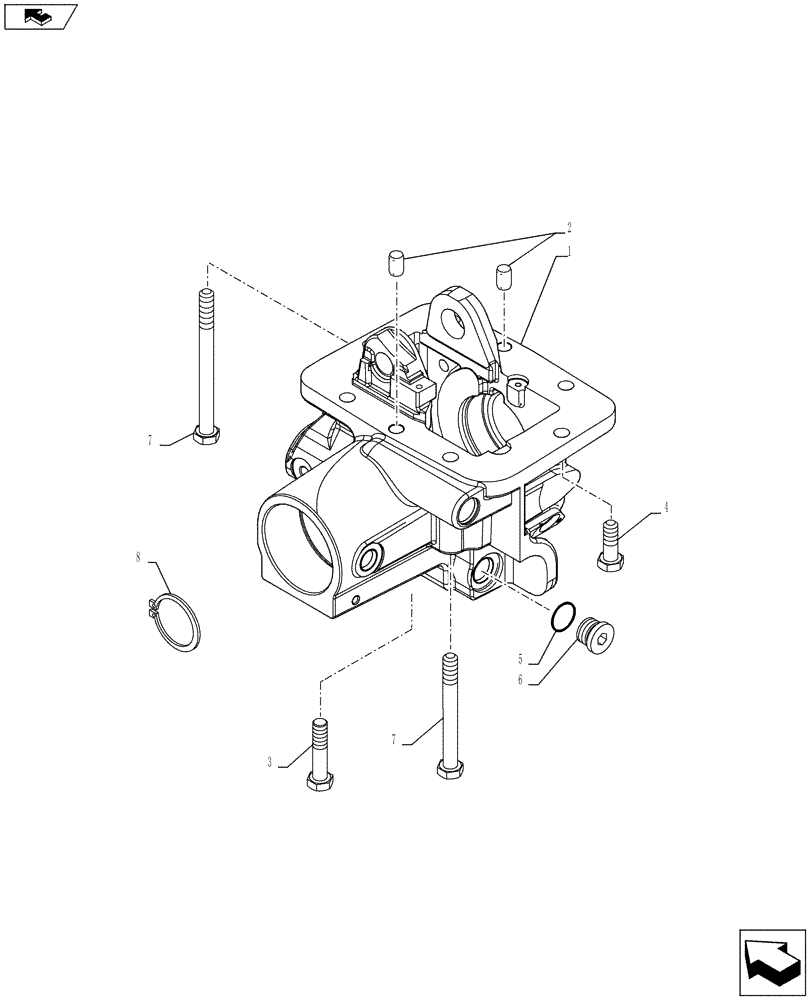

Запчасти Case IH FARMALL 115U (23.202.AD[01]) - STD + VAR - 390399 - 4WD, ELECTROHYDRAULIC ENGAGEMENT, IDLER CASE (23) - FOUR WHEEL DRIVE SYSTEM

1

84122181

BOX

Transfer

1шт.

2

10839810

DOWEL,12mm OD x 18mm L

2шт.

3

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

4

15540524

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8

3шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

7

15541724

SCREW,Hex, M12 x 1.25 x 110mm, Cl 8.8

1шт.

7

15542021

SCREW,Hex, M12 x 1.25 x 140mm, Cl 8.8

1шт.

8

11067776

SNAP RING,M29, Ext

1шт.
