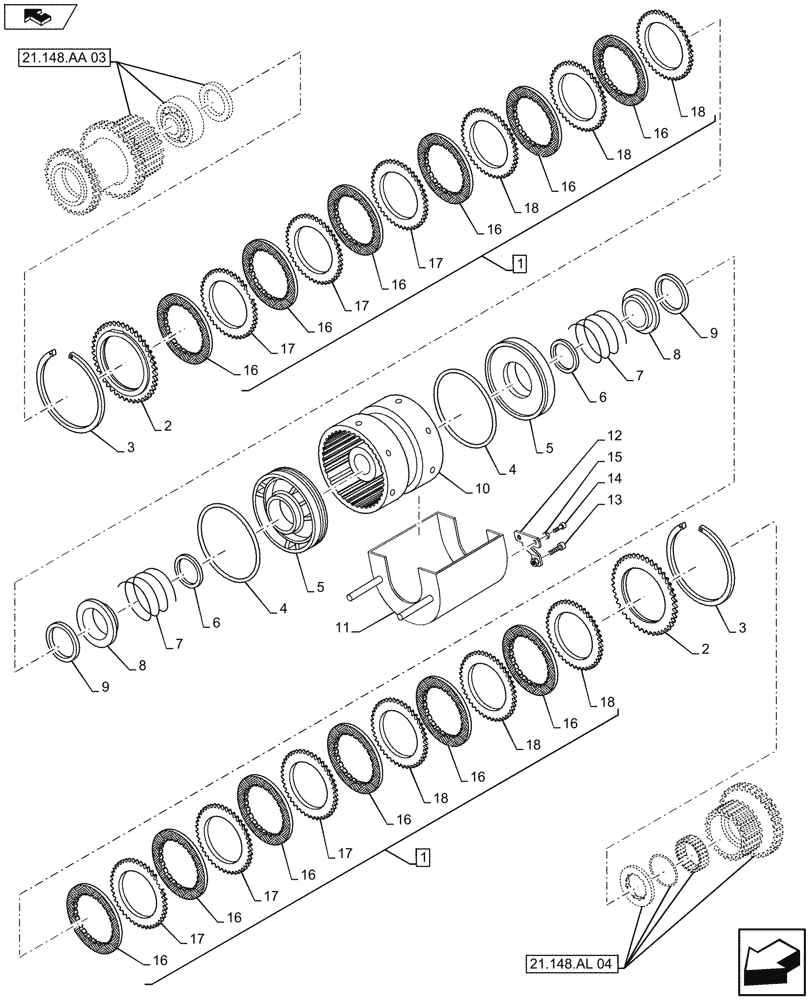

Запчасти Case IH FARMALL 115U (21.154.AL[01A]) - VAR - 332279 - HI-LO, POWERSHUTTLE (24X24), COMPONENTS - BEGIN YR 25-NOV-2013 (21) - TRANSMISSION

1

47389888

CLUTCH PACK

Plates Set, ASSY, Incl 16 - 18

2шт.

2

47389353

CLUTCH DISC,98mm ID x 139.11mm OD x 8.5mm Thk

2шт.

3

5124067

CIRCLIP

2шт.

4

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

2шт.

5

47389280

PISTON

2шт.

6

5137564

SEAL,48.55mm ID x 56mm OD x 3.2mm Thk

2шт.

7

5171681

SPRING,Compression, 79mm OD x 61mm L

2шт.

8

5188569

CUP

2шт.

9

5124059

CIRCLIP

2шт.

10

5188557

HOUSING

1шт.

11

5190154

GUARD

1шт.

12

5190155

BRACKET

1шт.

13

14359224

HEX SOC SCREW,M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

14

14305720

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

2шт.

15

12601270

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, PLN

2шт.

16

5154744

CLUTCH DRIVING PLATE

6шт.

17

5137544

CLUTCH PLATE,98.8mm ID x 139.11mm OD x 1.8mm Thk

6шт.

18

47394194

NOTCHED DISK

6шт.
