Запчасти Case IH FARMALL 115U (21.148.AL[03]) - VAR - 332279 - TRANSMISSION (24X24), SHAFT (1ST/2ND) (21) - TRANSMISSION

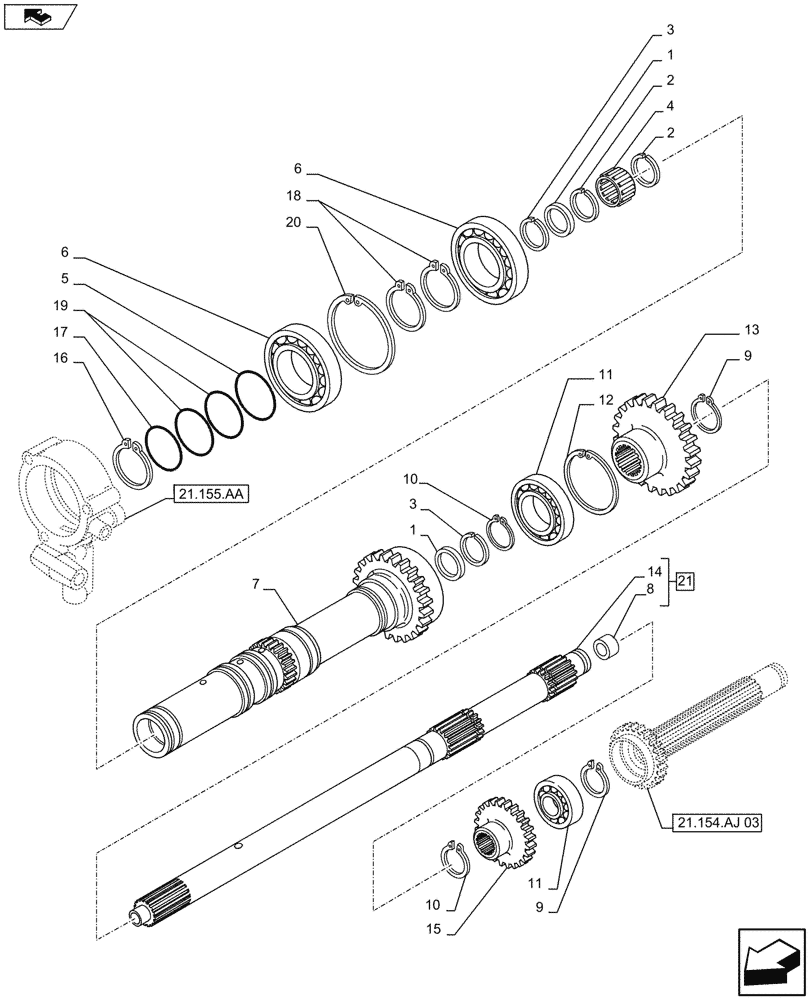

Схема запчастей Case IH FARMALL 115U - (21.148.AL[03]) - VAR - 332279 - TRANSMISSION (24X24), SHAFT (1ST/2ND) (21) - TRANSMISSION
12
10
11
21
home
21.154.aj 03
16
15
4
3
13
8
7
1
19
6
5
9
2
14
home
20
18
17
11
2
1
6
10
3
9
21.155.aa

Артикул

Название

Примечание

Количество

1

5168364

SEAL,40mm ID x 47mm OD x 4mm Thk

2шт.

2

5139494

SNAP RING,45mm D x 1.5mm Thk, Ext

2шт.

3

5117076

CIRCLIP,M47, Ext

2шт.

4

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

1шт.

5

14464680

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

6

5181866

BALL BEARING,65mm ID x 100mm OD x 18mm W

2шт.

7

5181850

SHAFT

1шт.

8

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

9

5135061

CIRCLIP,M45, Ext

2шт.

10

11068876

SNAP RING,M40, Ext

2шт.

11

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

12

11061976

SNAP RING,M80, Int

1шт.

13

5181849

GEAR

1шт.

14

NSS

NOT SOLD SEPARAT

Shaft, Incl in 21

1шт.

15

5181848

GEAR

1шт.

16

11069776

SNAP RING,M58, Ext

1шт.

17

14455180

O-RING,2.114" ID x 0.07" Width

1шт.

18

11070076

SNAP RING,M65, Ext

2шт.

19

14459680

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

2шт.

20

11062976

SNAP RING,Int, M100 x 3

1шт.

21

5181836

SHAFT

ASSY, Incl 8, 14

1шт.

Выбрано товаров: 21
