(21.148.AC[05]) - STD + VAR - 743552 - BEVEL GEAR, SHAFT (40KPH)

Запчасти Case IH FARMALL 115U (21.148.AC[05]) - STD + VAR - 743552 - BEVEL GEAR, SHAFT (40KPH) (21) - TRANSMISSION

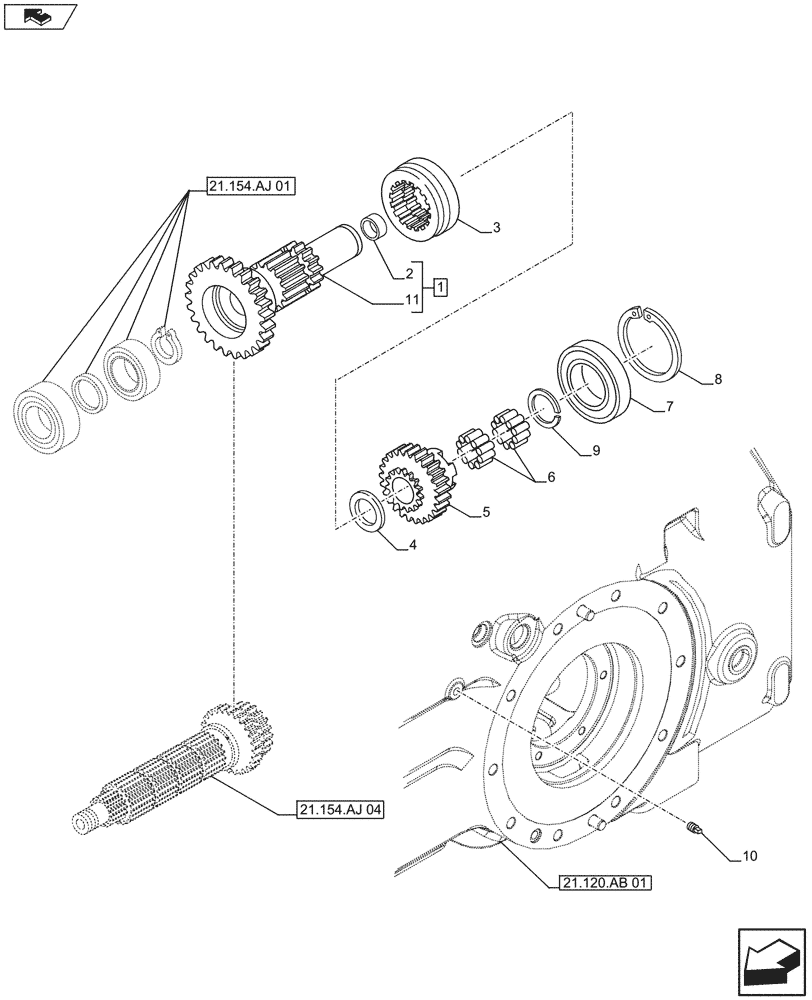

Схема запчастей Case IH FARMALL 115U - (21.148.AC[05]) - STD + VAR - 743552 - BEVEL GEAR, SHAFT (40KPH) (21) - TRANSMISSION
21.120.ab 01
5
2
3
1
home
4
9
home
6
10
7
11
8
21.154.aj 04
21.154.aj 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84244474

HALF SHAFT

ASSY, Incl 2, 11

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

3

5125880

SPLINED COUPLING,17T

1шт.

4

5182075

WASHER,42.13mm ID x 56mm OD x 4mm Thk

1шт.

5

84191097

GEAR

1шт.

6

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

1шт.

8

11075476

SNAP RING,M110, Int

1шт.

9

5117076

CIRCLIP,M47, Ext

1шт.

10

14323914

PLUG,M10 x 1.25 x 14mm L

2шт.

11

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.
