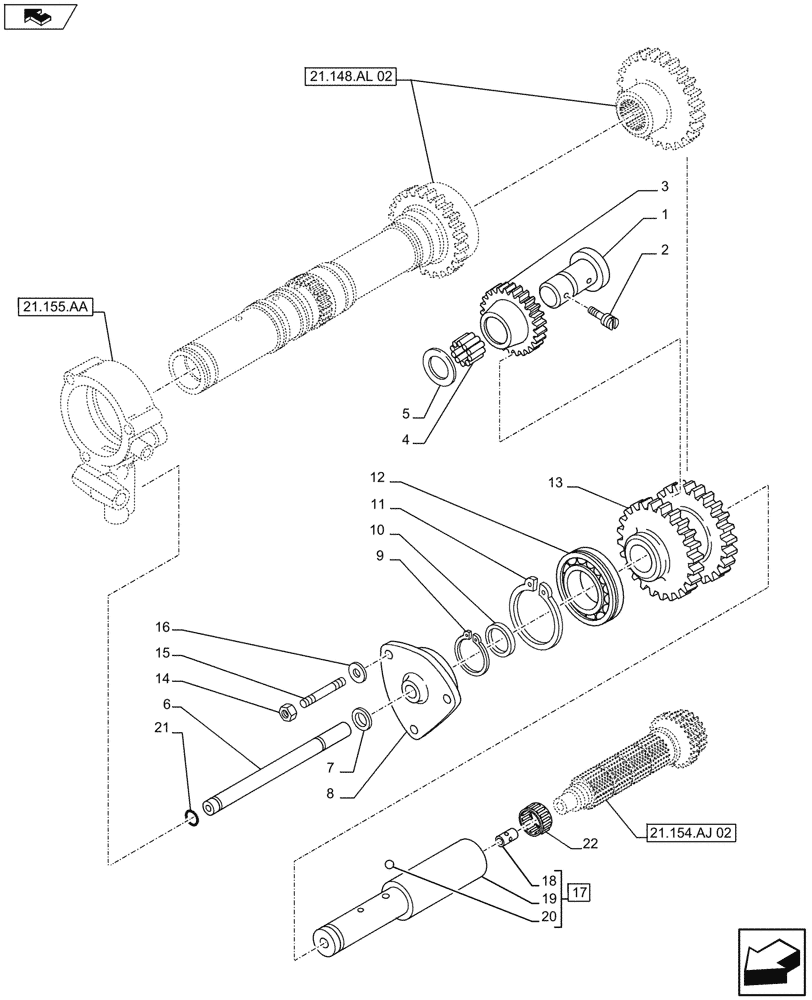

Запчасти Case IH FARMALL 115U (21.148.AA[04]) - VAR - 332299 - TRANSMISSION (20X20), SYNCHRONIZER (1ST/2ND) (21) - TRANSMISSION

1

5137525

PIN

1шт.

2

84424141

THREADED ROD

1шт.

3

5137524

IDLER GEAR

1шт.

4

5117559

NEEDLE BEARING CAGE,32mm ID x 38mm OD x 26mm W

1шт.

5

5117560

THRUST WASHER,32.01mm ID x 48mm OD x 4.5mm Thk

1шт.

6

87343444

RIGID TUBE,10 mm ID x 15.60 mm OD x 168 mm L

1шт.

7

11066376

SNAP RING,M15, Ext

1шт.

8

87343448

COVER

1шт.

9

5109282

CIRCLIP,M35, Ext x 2.50 Thk

1шт.

10

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

1шт.

11

5127690

SNAP RING

1шт.

12

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

13

87343438

GEAR

1шт.

14

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

15

13517210

STUD

3шт.

16

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

17

84162069

DRIVEN SHAFT

ASSY, Incl 18 - 20

1шт.

18

14606870

LOCK PIN,M8 x 28, Slotted

1шт.

19

NSS

NOT SOLD SEPARAT

Driven Shaft, Incl in 17

1шт.

20

83416928

BALL,1/4 OD

1шт.

21

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

22

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

1шт.
