(21.148.AA[02]) - STD + VAR - 743552 - TRANSMISSION (40KPH), SYNCHRONIZER (3RD/4TH)

Запчасти Case IH FARMALL 115U (21.148.AA[02]) - STD + VAR - 743552 - TRANSMISSION (40KPH), SYNCHRONIZER (3RD/4TH) (21) - TRANSMISSION

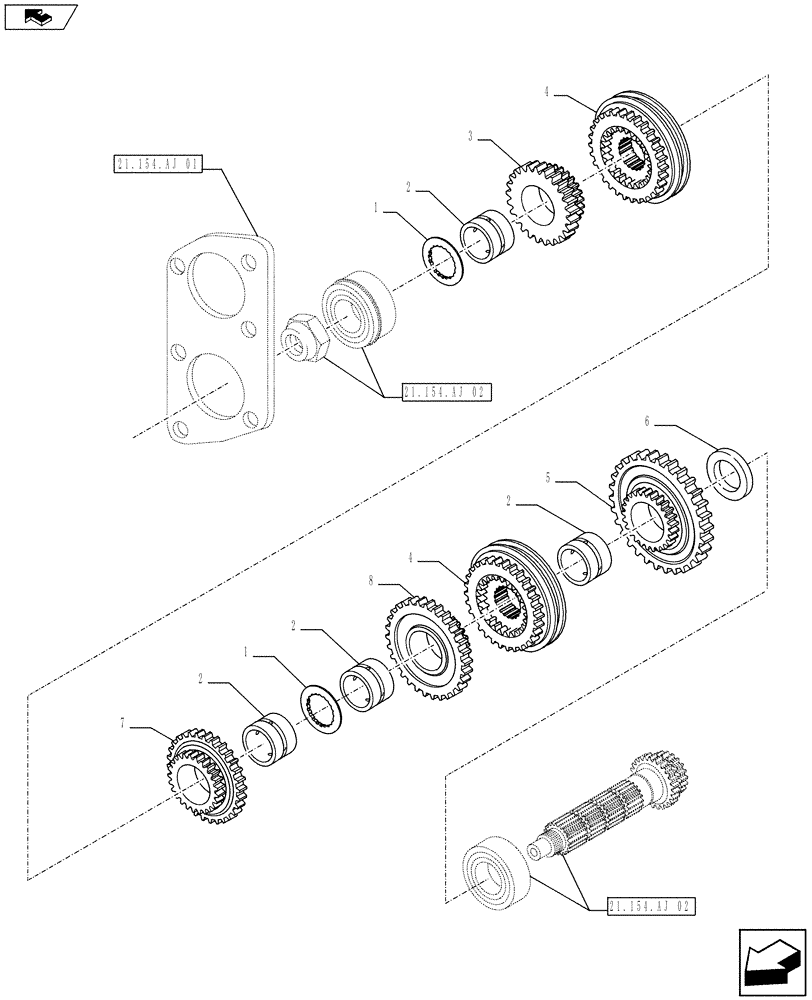

Схема запчастей Case IH FARMALL 115U - (21.148.AA[02]) - STD + VAR - 743552 - TRANSMISSION (40KPH), SYNCHRONIZER (3RD/4TH) (21) - TRANSMISSION
21.154.aj 01
5
1
2
8
4
2
7
6
4
3
2
2
1
home
21.154.aj 02
21.154.aj 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87330666

ROLLER THRUST PLATE

2шт.

2

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

4шт.

3

87330661

GEAR

Speed 4

1шт.

4

87358181

SYNCHRONIZER

2шт.

5

87330658

GEAR

Speed 1

1шт.

6

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

7

87330660

GEAR

Speed 3

1шт.

8

87330659

GEAR

Speed 2

1шт.
