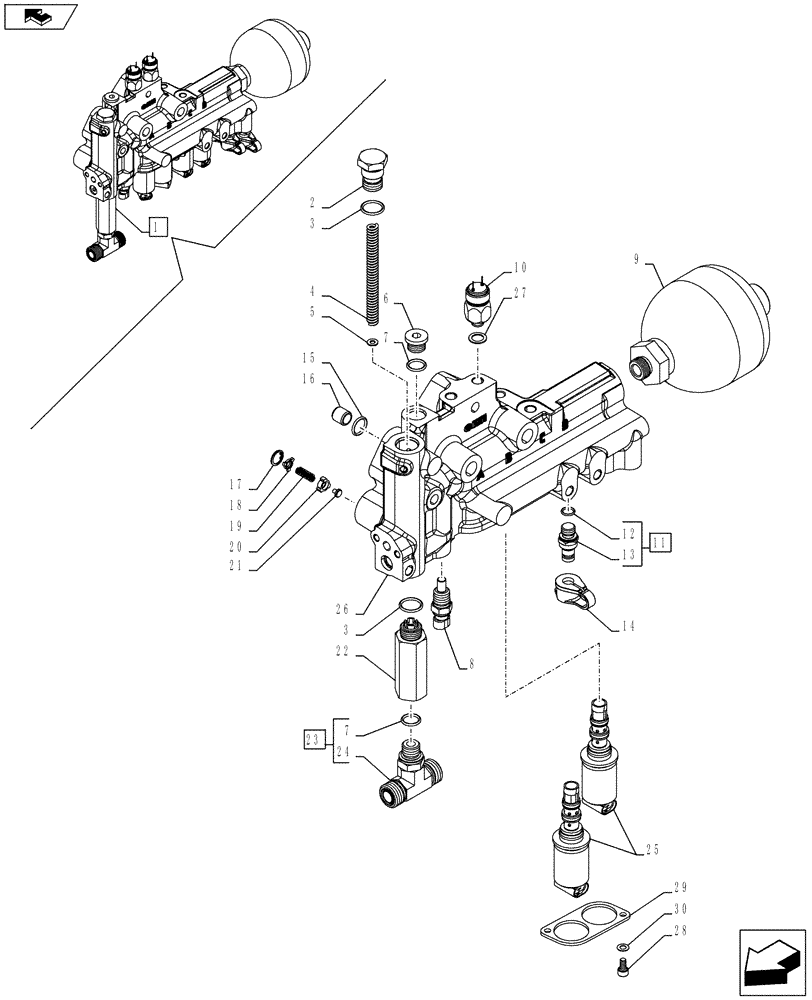

Запчасти Case IH FARMALL 115U (21.134.AM[04]) - VAR - 332279 - TRANSMISSION CONTROL VALVE, COMPONENTS (21) - TRANSMISSION

1

84485128

HYDRAULIC VALVE

ASSY, Incl 2 - 30

1шт.

2

5185412

PLUG,11mm ID x 15mm OD x 15mm L

1шт.

3

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

4

84407183

SPRING,11.5mm OD x 120mm L

1шт.

5

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

6

10119411

PLUG,M18 x 1.5 x 12.00mm

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

8

82028133

SENSOR,3/8"-18

1шт.

9

87314179

ACCUMULATOR,0.75L

1шт.

10

87494632

PRESSURE SWITCH,M12 x 1.5

2шт.

11

5185423

COUPLING

ASSY, Incl 12, 13

4шт.

12

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

4шт.

14

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

4шт.

15

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3шт.

16

5178778

SPACER,11mm ID x 15mm OD x 15mm L

3шт.

17

11057476

SNAP RING,M16, Int

1шт.

18

5170396

DISC,6mm ID

1шт.

19

5120761

SPRING,7.7mm OD x 20.5mm L

1шт.

20

5170395

BY-PASS VALVE

1шт.

21

5188811

PIN,4mm OD x 8mm L

1шт.

22

5182008

HYD CONNECTOR

1шт.

23

87016910

TEE,1"-14 ORFS x M18 x 1.5 ORB Br

ASSY, Incl 7 (Qty 1), 24

1шт.

24

NSS

NOT SOLD SEPARAT

Fitting, Incl in 23

1шт.

25

87739558

SOLENOID VALVE,14W

4шт.

25

87739558R

REMAN-SOLENOID

4шт.

25

87739558C

CORE-SOLENOID

Return Number

4шт.

26

NSS

NOT SOLD SEPARAT

Hydraulic Valve Body, Incl in 1

1шт.

27

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

4шт.

28

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

4шт.

29

87343484

BRACKET

2шт.

30

10296160

SEALING WASHER,M12.2 x 18 x 1, Copper

2шт.
