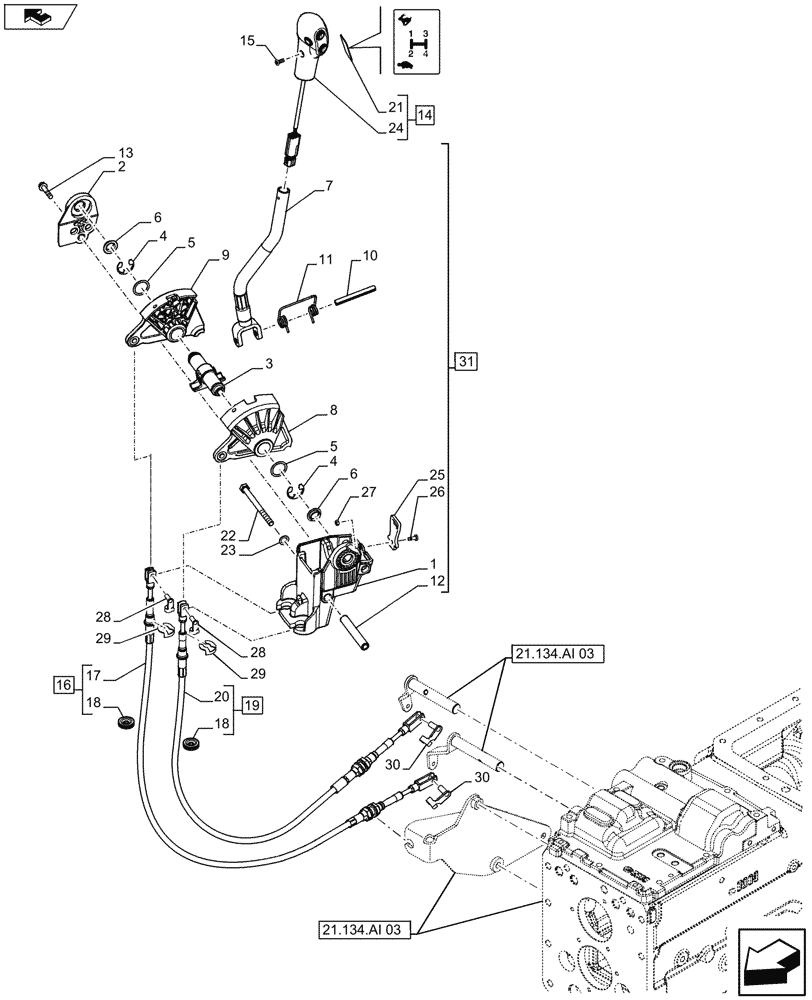

Запчасти Case IH FARMALL 115U (21.134.AI[04]) - VAR - 332846 - TRANSMISSION (24X24), GEARSHIFT - END YR 19-JUN-2014 (21) - TRANSMISSION

1

84338365

SUPPORT

Black

1шт.

2

84478538

SUPPORT

1шт.

3

84338367

SHAFT

1шт.

4

16165174

CIRCLIP,M16

2шт.

5

84583037

WASHER,22.5mm ID x 30mm OD x 1mm Thk

2шт.

6

84295357

BUSHING,16mm ID x 24mm OD x 6mm L

2шт.

7

84535350

LEVER

1шт.

8

84338368

SUPPORT

LH, Black

1шт.

9

84338369

SUPPORT

RH, Black

1шт.

10

14607870

LOCK PIN,M8 x 70, Slotted

1шт.

11

84325171

SPRING

1шт.

12

84338346

SPACER,8mm ID x 13mm OD x 81mm L

2шт.

13

15926104

SELF-TAP SCREW,ST 6.3 x 32 Type AB, HTS DAC

2шт.

14

84478190

LEVER

ASSY, Incl 21, 24

1шт.

15

13310977

SCREW,Pozidriv Oval Hd, Csk, M5 x 14mm, Full Thd, SST

1шт.

16

84485015

BOWDEN CONTROL

ASSY, RH, Incl 17, 18 (Qty 1)

1шт.

17

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 16

1шт.

18

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

2шт.

19

84485018

BOWDEN CONTROL

ASSY, LH, Incl 18 (Qty 1), 20

1шт.

20

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 19

1шт.

21

84473815

DECAL

1шт.

22

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.

23

10284460

WASHER,M10.2 x 16 x 1.5, Copper

2шт.

24

NSS

NOT SOLD SEPARAT

Knob, Incl in 14

1шт.

25

47367599

BRACKET

1шт.

26

13274111

SCREW,Pozidriv Pan Hd, M5 x 14mm, Cl 5.8, Full Thd

1шт.

27

15896414

NUT,M5, Cl 8

1шт.

28

85819469

CLIP

2шт.

29

84349366

CIRCLIP

2шт.

30

47531067

SPRING CLIP

2шт.

31

84534721

SELECTOR

ASSY, Incl 1 - 13, 25 - 27

1шт.
