(21.112.AC[08]) - VAR - 743918 - TRANSMISSION HOUSING, PLUG, FITTING, W/O FRONT PTO, W/O MID MOUNT VALVES, NA

Запчасти Case IH FARMALL 115U (21.112.AC[08]) - VAR - 743918 - TRANSMISSION HOUSING, PLUG, FITTING, W/O FRONT PTO, W/O MID MOUNT VALVES, NA (21) - TRANSMISSION

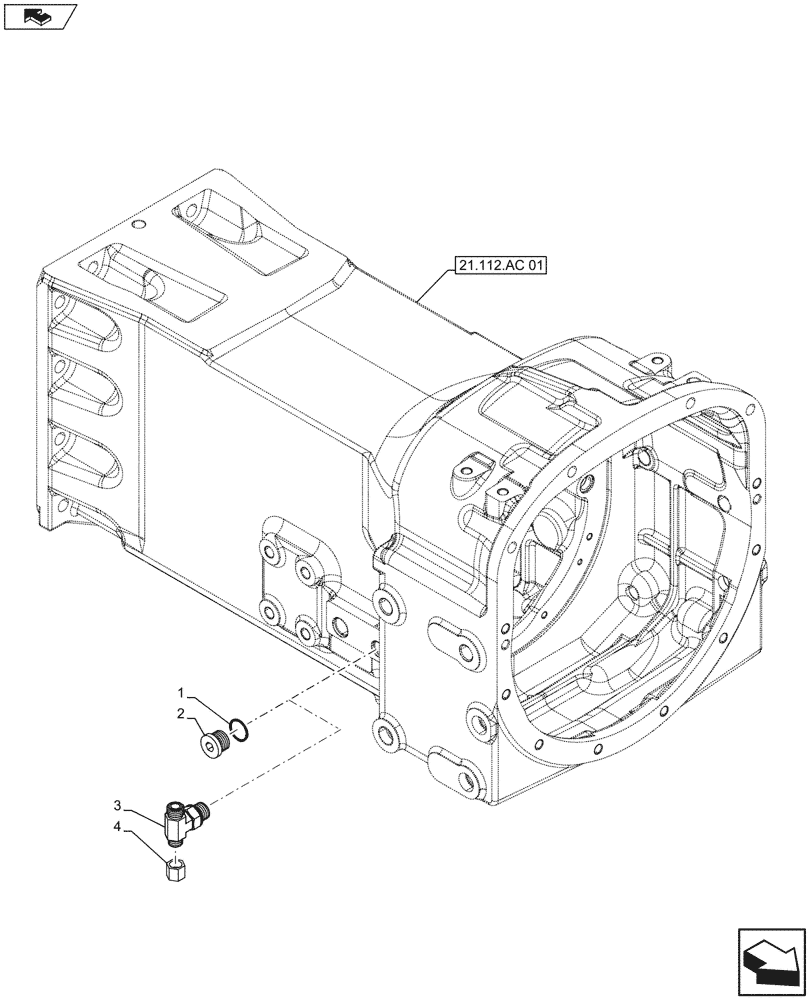

Схема запчастей Case IH FARMALL 115U - (21.112.AC[08]) - VAR - 743918 - TRANSMISSION HOUSING, PLUG, FITTING, W/O FRONT PTO, W/O MID MOUNT VALVES, NA (21) - TRANSMISSION
home
3
21.112.ac 01
2
1
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

10119411

PLUG,M18 x 1.5 x 12.00mm

1шт.

W/O Front PTO & Mid Mount Valves

1шт.

2

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

W/O Front PTO & Mid Mount Valves

1шт.

3

84591615

UNION TEE

1шт.

4

87668376

CAP,9/16"-18 Inch THD

1шт.
