(21.109.AK[01]) - STD + VAR - 390174 - OIL COOLER

Запчасти Case IH FARMALL 115U (21.109.AK[01]) - STD + VAR - 390174 - OIL COOLER (21) - TRANSMISSION

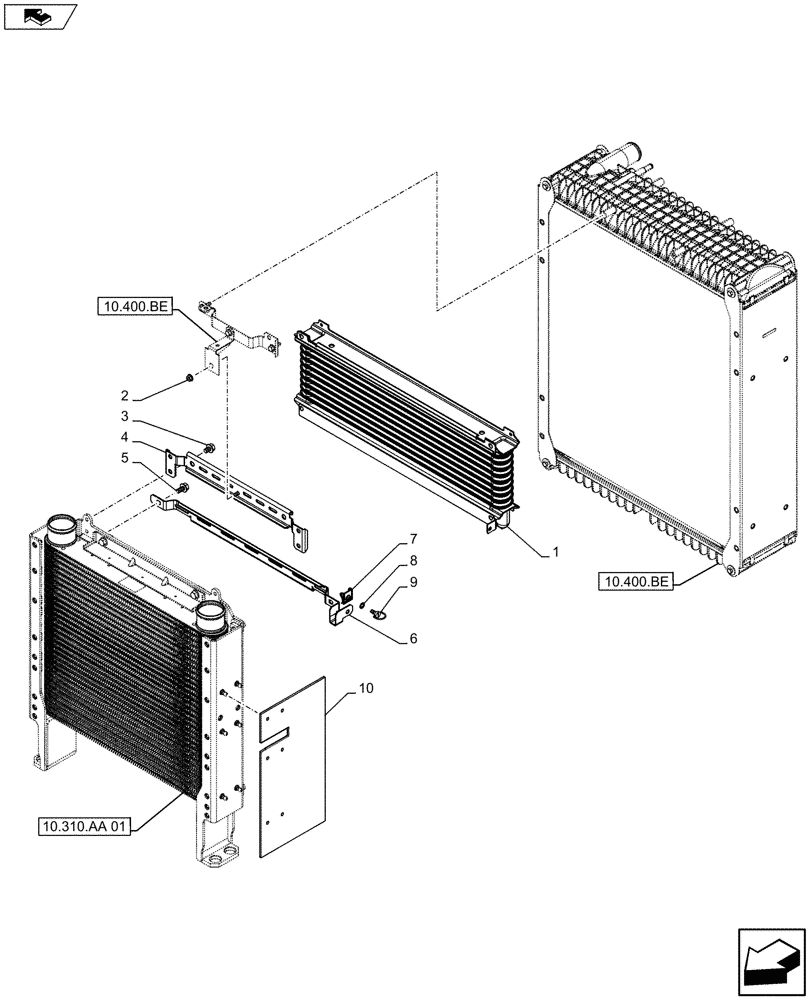

Схема запчастей Case IH FARMALL 115U - (21.109.AK[01]) - STD + VAR - 390174 - OIL COOLER (21) - TRANSMISSION
10.310.aa 01
1
8
10
9
3
home
4
2
7
5
6
home
10.400.be
10.400.be
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84361241

OIL COOLER,210MM X 560MM

Transmission Oil

1шт.

2

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

1шт.

3

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

1шт.

4

84467142

SUPPORT

Transmission Oil Cooler, Upper

1шт.

5

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

6

84473133

SUPPORT

Transmission Oil Cooler, Lower

1шт.

7

82004582

CLIP,Square, 25mm

1шт.

8

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

9

87614935

STUD,6mm OD

1шт.

10

47394994

SEAL,175mm W x 440mm L

Seal Radiator

2шт.
